INSTRUMENTS – FAULT DIAGNOSIS

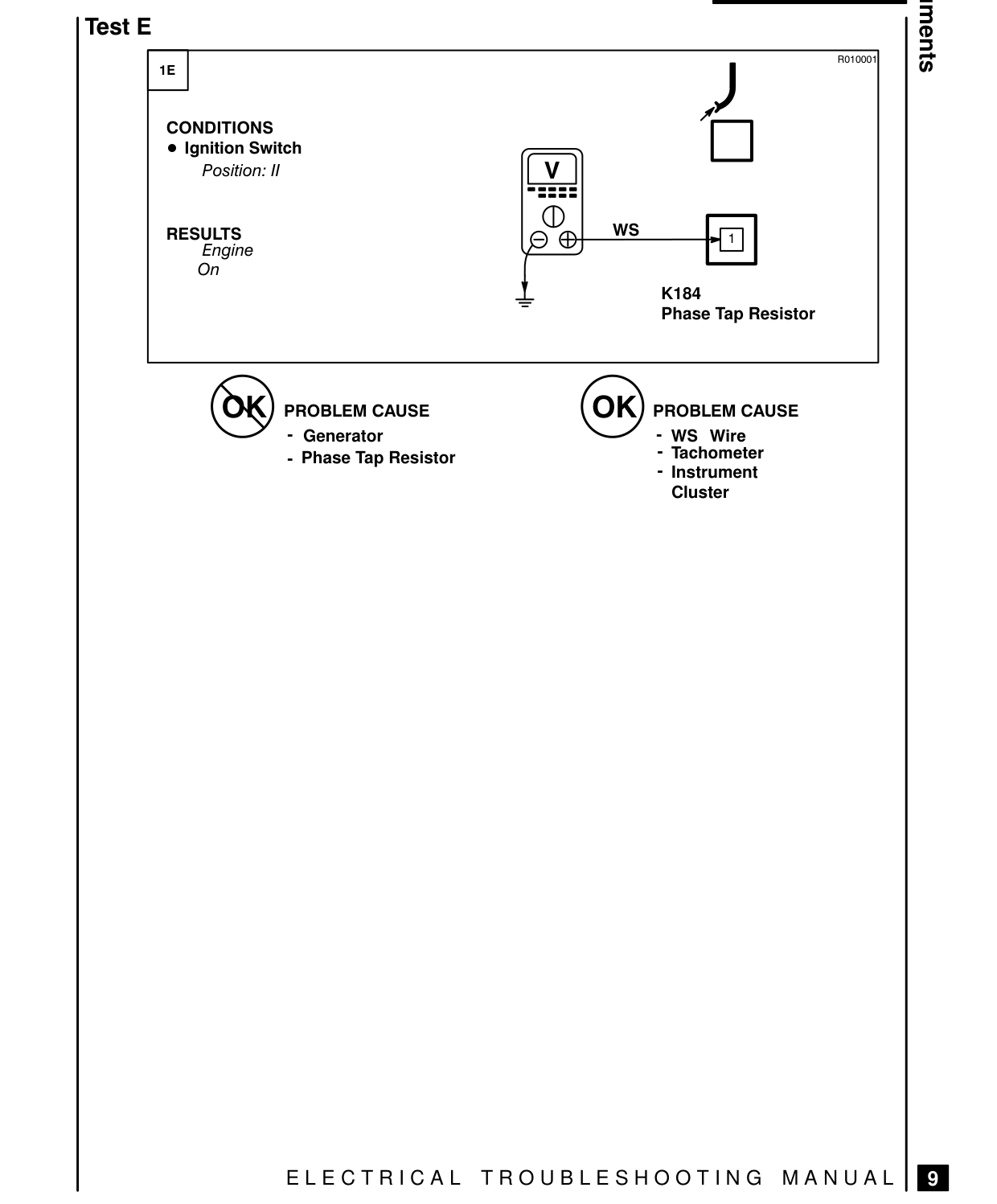

Test E

CONDITIONS e Ignition Switch Position: Il

RESULTS Engine On

(59) PROBLEM CAUSE - Generator - Phase Tap Resistor

ELECTRICAL TROUBLESHOOTING MANUAL | IE}

RO10001

ws

K184 Phase Tap Resistor

PROBLEM CAUSE - WS Wire - Tachometer - Instrument Cluster
