InstrumentsInstruments – fault diagnosis
INSTRUMENTS – FAULT DIAGNOSIS

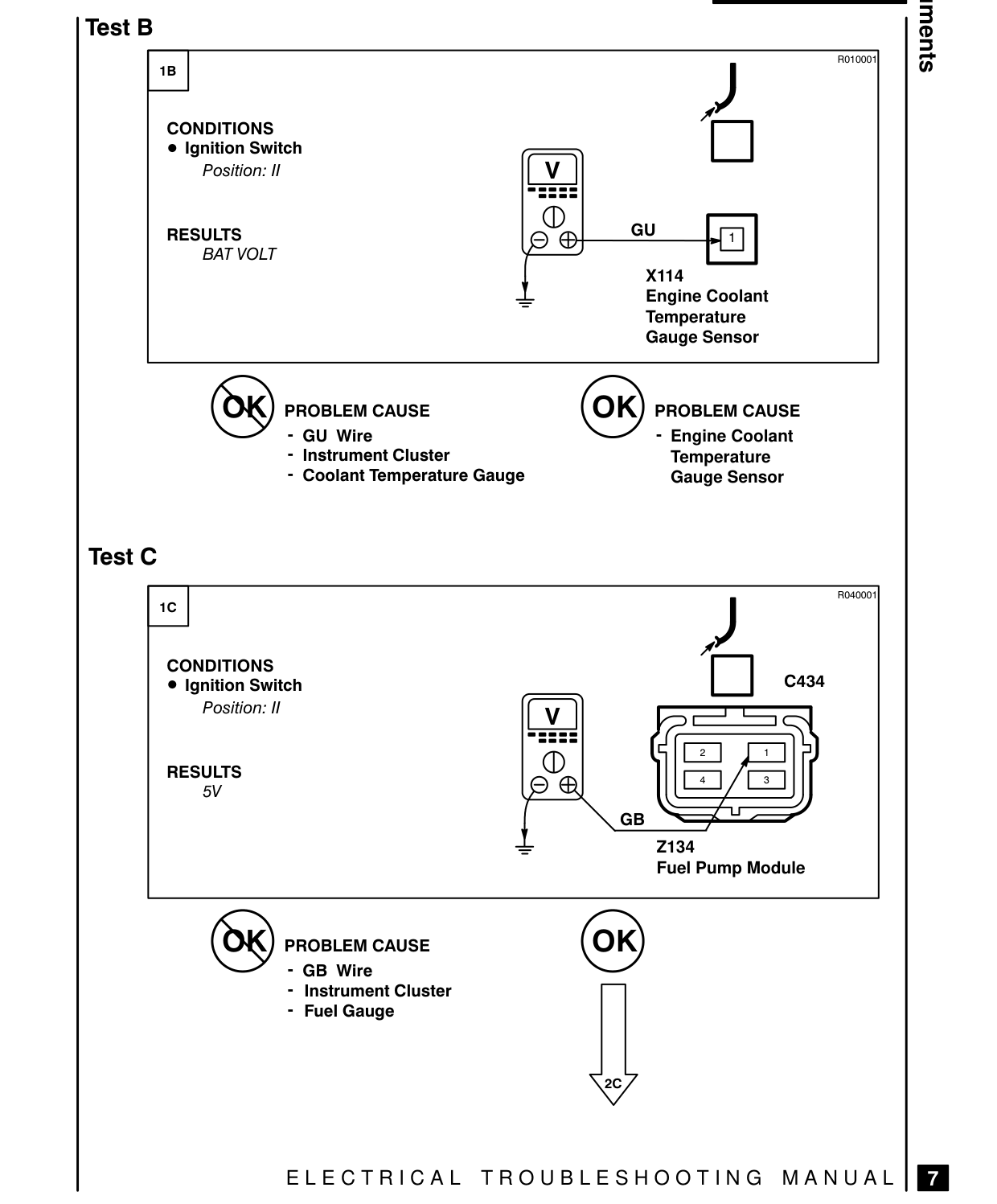

Test B ® R010001 CONDITIONS e Ignition Switch Position: Il
RESULTS GU fa] BAT VOLT X114 Engine Coolant Temperature Gauge Sensor
(59) PROBLEM CAUSE PROBLEM CAUSE - GU Wire - Engine Coolant - Instrument Cluster Temperature - Coolant Temperature Gauge Gauge Sensor
Test C
R040001 CONDITIONS ® Ignition Switch C434 Position: Il
RESULTS py oO @
GB
Z134 Fuel Pump Module
(59) PROBLEM CAUSE - GB Wire Instrument Cluster Fuel Gauge
ELECTRICAL TROUBLESHOOTING MANUAL
