POWER WINDOWS – FAULT DIAGNOSIS

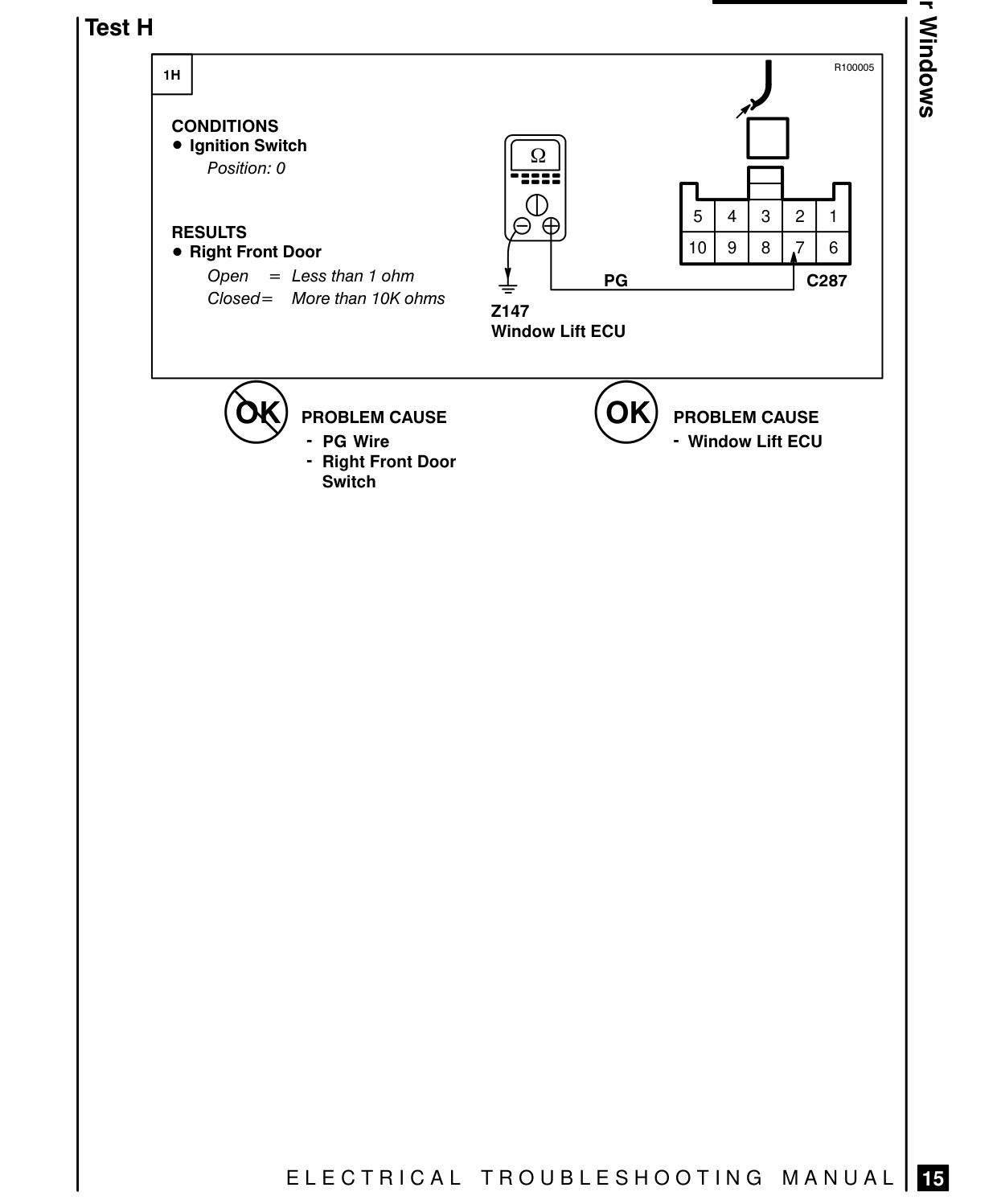

Test H

CONDITIONS ® Ignition Switch Position: 0

suLTs RESULT e Right Front Door Open = Less than 1 ohm Closed= More than 10K ohms

(59) PROBLEM CAUSE - PG Wire - Right Front Door Switch

ELECTRICAL TROUBLESHOOTING MANUAL

R100005 gS pi

or

XG [10] 9]8|7]s6] PG C287

2147 Window Lift ECU

PROBLEM CAUSE - Window Lift ECU
