POWER WINDOWS – FAULT DIAGNOSIS

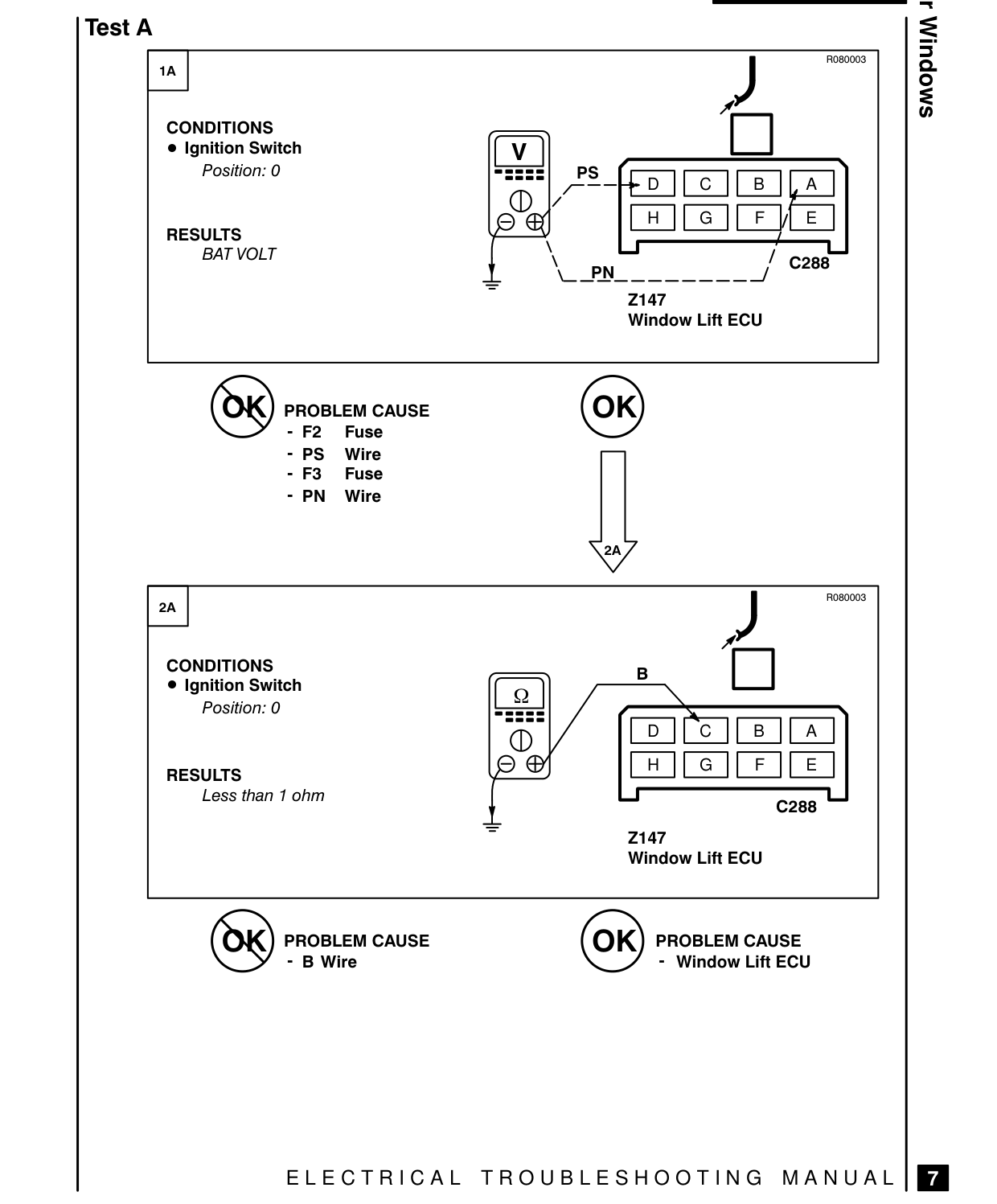

Test A

CONDITIONS ® Ignition Switch Position: 0

RESULTS BAT VOLT

(5) PROBLEM CAUSE - F2 Fuse

- PS Wire - F3 Fuse

- PN Wire

CONDITIONS ® Ignition Switch Position: 0

RESULTS Less than 1 ohm

PROBLEM CAUSE - B Wire

ELECTRICAL

R080003

PS Eas S =f \_ pn j coss z147 Window Lift ECU

R080003

[oD]

C288

Z147 Window Lift ECU

(0K) PROBLEM CAUSE - Window Lift ECU
