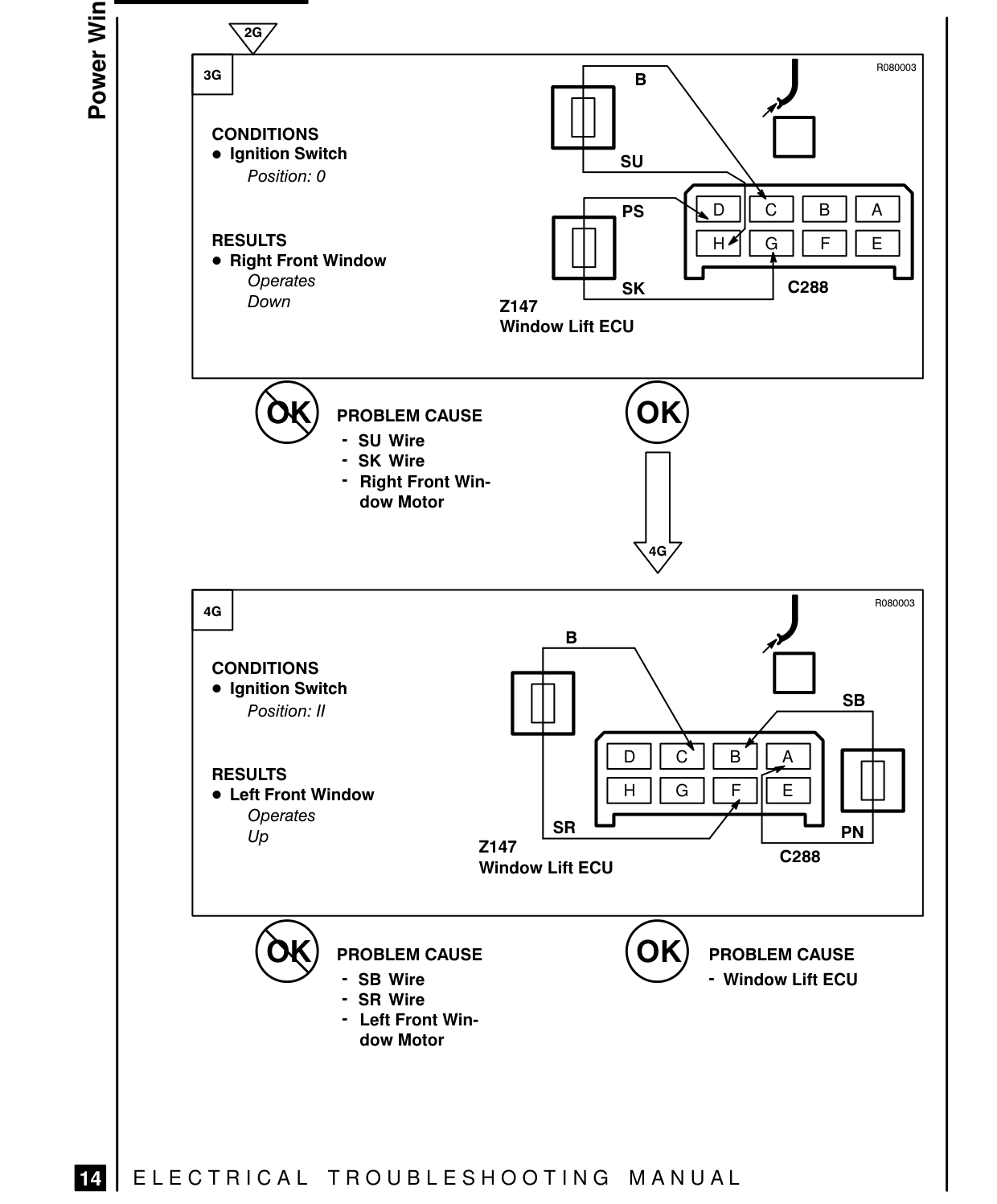

POWER WINDOWS – FAULT DIAGNOSIS

ao CONDITIONS ® Ignition Switch Position: 0

RESULTS e Right Front Window Operates Down

(5) PROBLEM CAUSE - SU Wire - SK Wire Right Front Window Motor

CONDITIONS Position: II ® Ignition Switch

RESULTS ® Left Front Window Operates Up

(5) PROBLEM CAUSE - SB Wire - SR Wire Left Front Window Motor

BB} | ELECTRICAL TROUBLESHOOTING MANUAL

R080003

aD |

C288 Z147 Window Lift ECU

RO80003

li} SB [0D] il

2147 Window Lift ECU C288

PROBLEM CAUSE - Window Lift ECU
