POWER WINDOWS – FAULT DIAGNOSIS

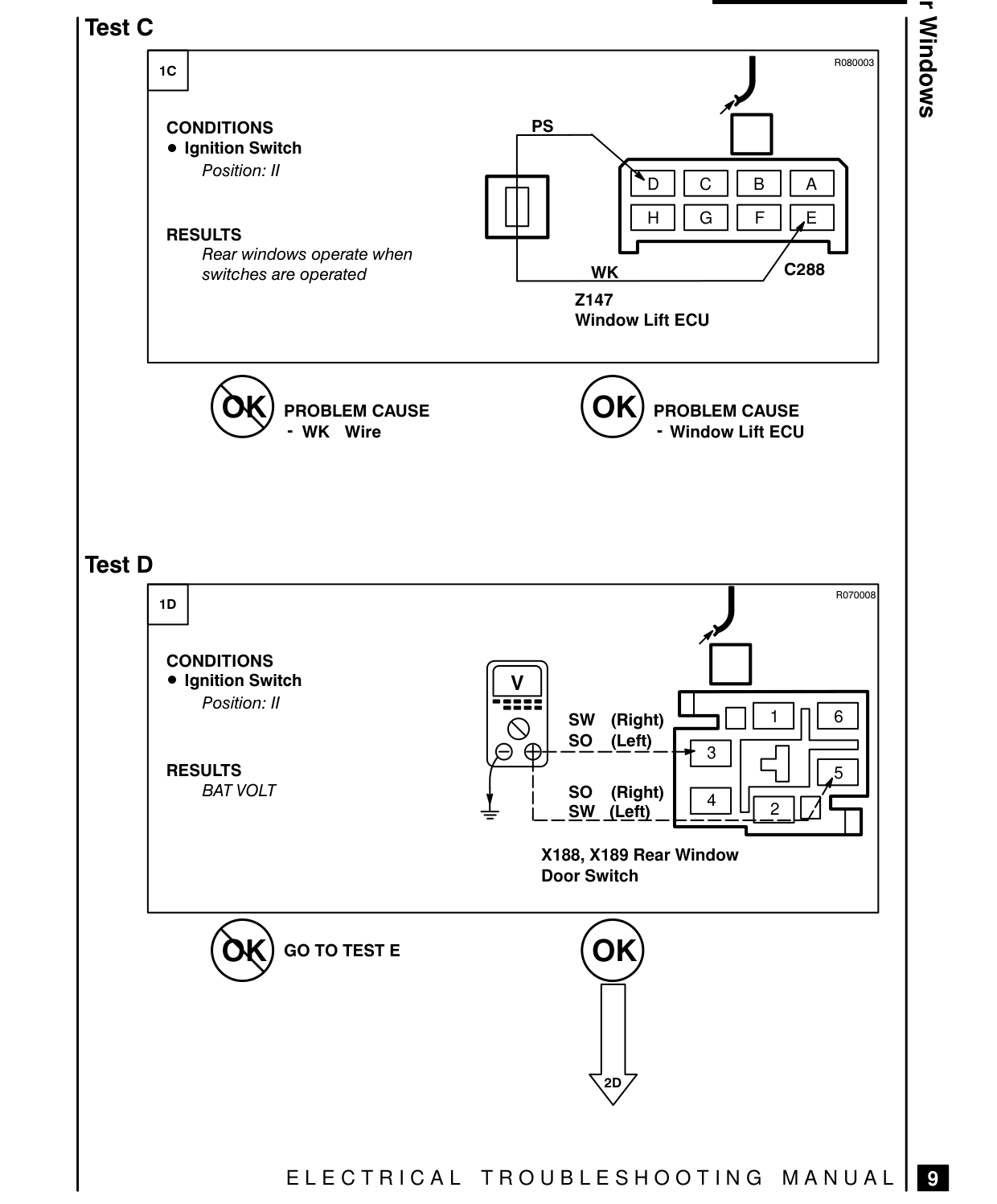

Test C

CONDITIONS ® Ignition Switch Position: Il

RESULTS Rear windows operate when switches are operated

(5) PROBLEM CAUSE - WK Wire

Test D EB 1D

CONDITIONS ® Ignition Switch Position: Il

RESULTS BAT VOLT

(5) GOTO TESTE

ELECTRICAL TROUBLESHOOTING MANUAL | IE}

recs] | @. PS Il

C288 Z147 Window Lift ECU

PROBLEM CAUSE - Window Lift ECU

R070008

1 Q | SW (right 0 Oo @L SO _(Left)

SO (Right) L_swen | LH JAMA LT

X188, X189 Rear Window Door Switch
