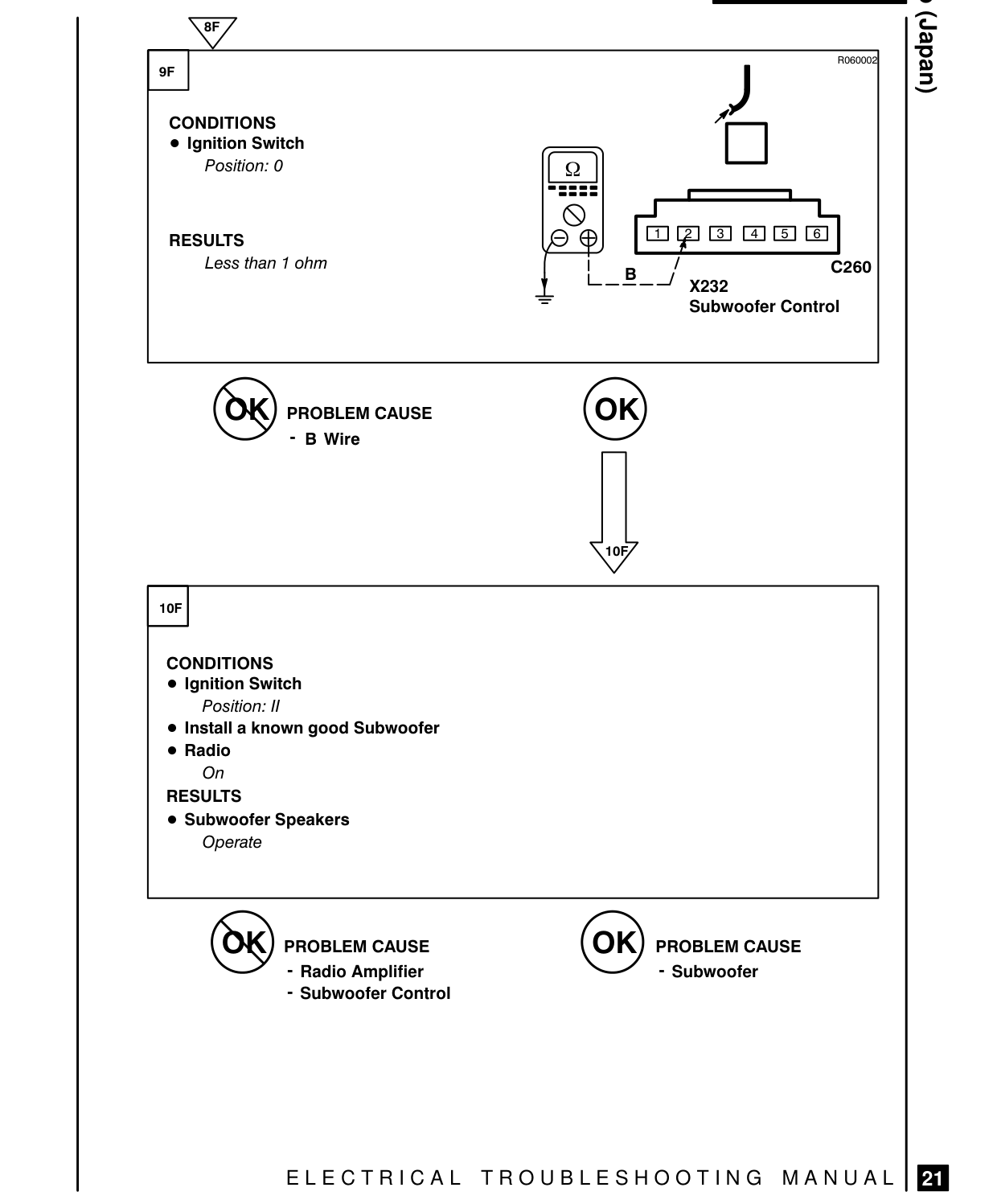

RADIO (JAPAN) – FAULT DIAGNOSIS

CONDITIONS e Ignition Switch Position: 0

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE - B Wire

CONDITIONS ® Ignition Switch Position: Il

® Install a known good Subwoofer e Radio

On

RESULTS

eo Subwoofer Speakers Operate

(59) PROBLEM CAUSE - Radio Amplifier - Subwoofer Control

ELECTRICAL TROUBLESHOOTING MANUAL | El

Lo) R060002)

ol]

C260 L_B_/ xo3 Subwoofer Control

PROBLEM CAUSE - Subwoofer
