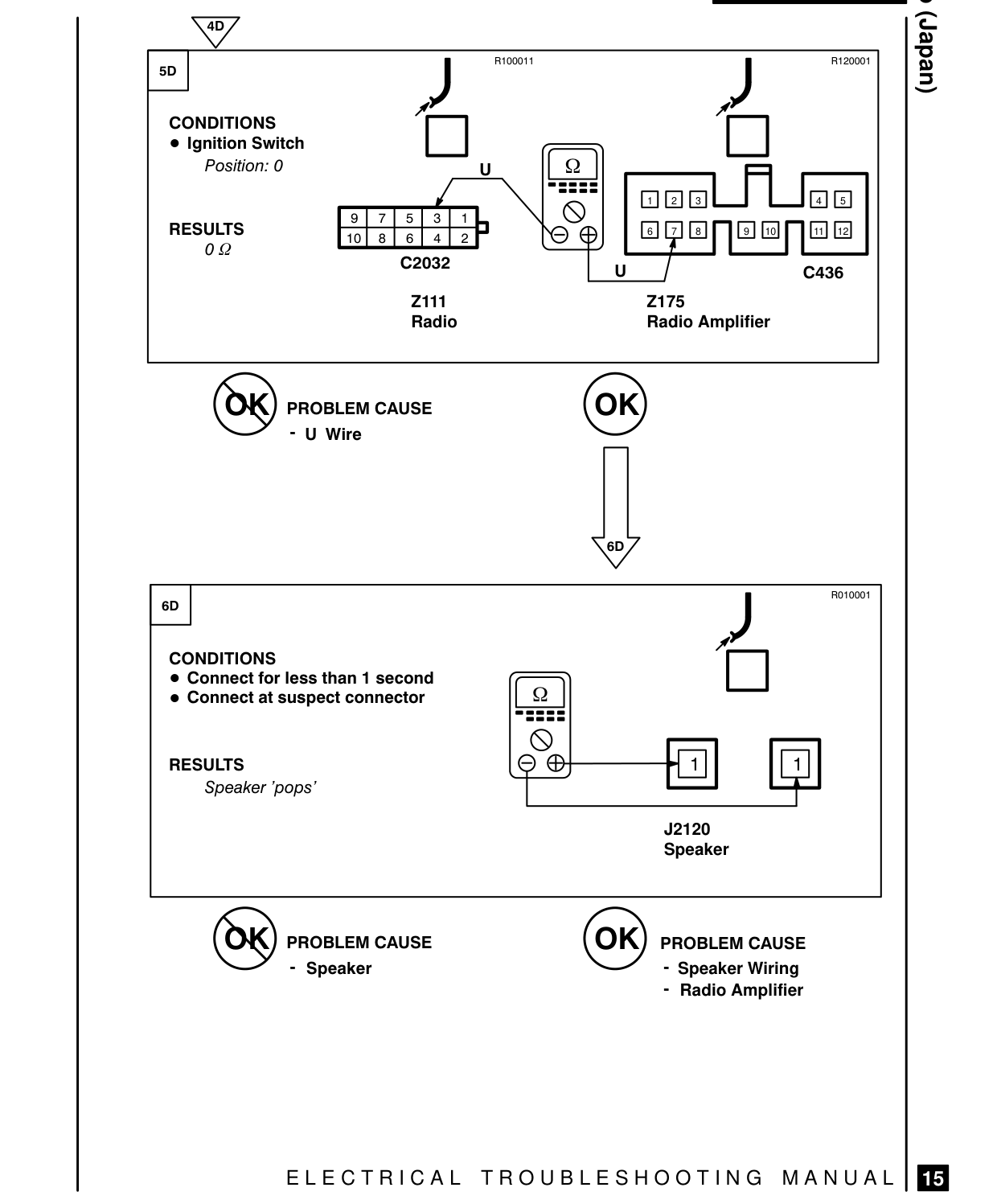

RADIO (JAPAN) – FAULT DIAGNOSIS

CONDITIONS e Ignition Switch Position: 0

RESULTS BREE 0] 86] a] 2 C2032

Z111 Radio

(59) PROBLEM CAUSE = U Wire

oo | CONDITIONS e Connect for less than 1 second e Connect at suspect connector

RESULTS Speaker ‘pops’

(59) PROBLEM CAUSE - Speaker

ELECTRICAL TROUBLESHOOTING MANUAL

E77 o

R100011 R120001

ln im C436

2175 Radio Amplifier

R010001

J2120 Speaker

PROBLEM CAUSE - Speaker Wiring - Radio Amplifier
