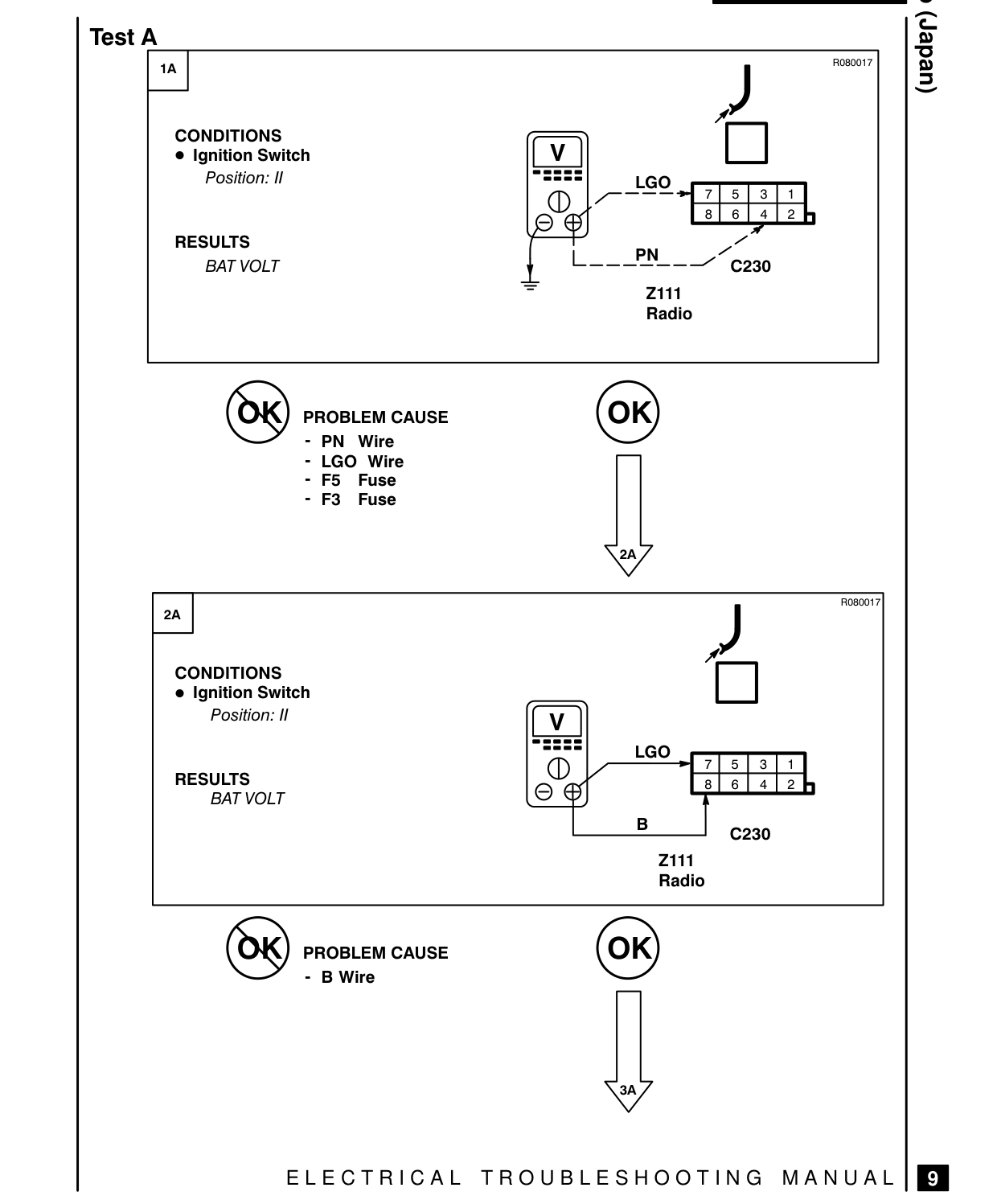

RADIO (JAPAN) – FAULT DIAGNOSIS

Test a EB CONDITIONS ® Ignition Switch Position: II

RESULTS BAT VOLT

(09) PROBLEM CAUSE - PN Wire - LGO Wire F5 Fuse F3 Fuse

® Ignition Switch CONDITIONS

Position: Il

RESULTS

(59) PROBLEM CAUSE - B Wire

ELECTRICAL TROUBLESHOOTING MANUAL | IE}

R080017

LGO Dl oN LL ——"c230 Z111 Radio

R080017

lo)

C230

Z111 Radio
