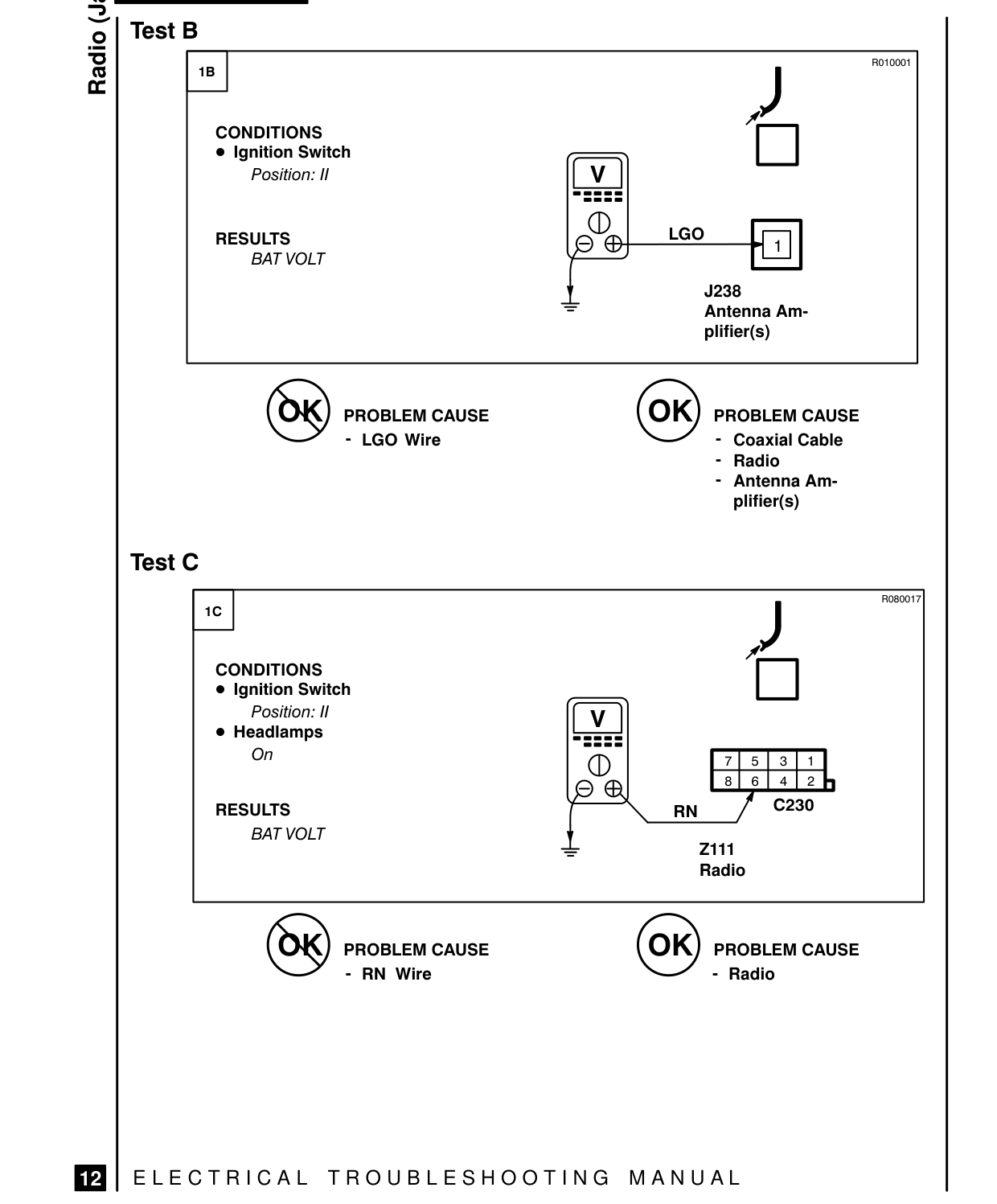

RADIO (JAPAN) – FAULT DIAGNOSIS

Ee] 1s |

CONDITIONS ® Ignition Switch Position: II

RESULTS BAT VOLT

(59) PROBLEM CAUSE - LGO Wire

Test C 1c | CONDITIONS ® Ignition Switch Position: II eo Headlamps On RESULTS BAT VOLT

(59) PROBLEM CAUSE = RN Wire

EB | ELECTRICAL TROUBLESHOOTING MANUAL

R010001

LGO J238 Antenna Amplifier(s)

PROBLEM CAUSE Coaxial Cable Radio Antenna Amplifier(s)

R080017

TTT DB elolale} RN C230

Z111 Radio

PROBLEM CAUSE Radio

14 Electrical
