Range Rover Classic
MFI
1
REPAIR

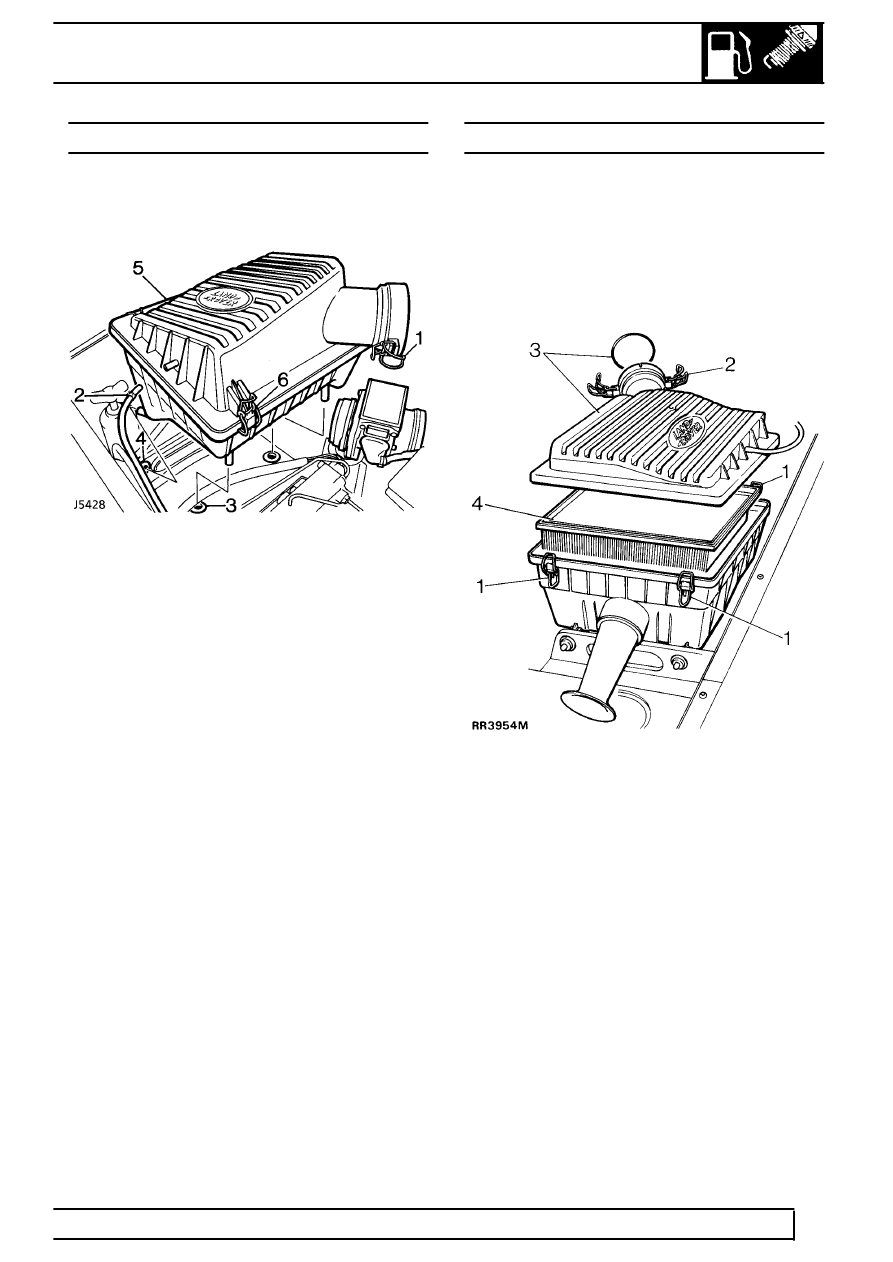

AIR CLEANER ASSEMBLY
Service repair no - 19.10.01
Remove
1. Release 2 clips securing air cleaner to air flow
sensor.
2. Release clip and disconnect hose from air
cleaner.
3. Release 2 rubber mountings securing bottom of
air cleaner to body.
4. Slide air cleaner backwards and release from
mounting bracket.
5. Remove air cleaner assembly.
Do not carry out
further dismantling if component is removed
for access only.
6. Release 4 clips securing top of air cleaner and
remove.
7. Withdraw air cleaner element and discard.
Refit
8. Fit new air cleaner element and secure in
position.
9. Reverse removal procedure.
AIR CLEANER ELEMENT
Service repair no - 19.10.08
Remove
1. Release four clips retaining air cleaner cover.
2. Release two clips to air flow meter.
3. Remove air cleaner cover, retain air flow meter
’O’ring.
4. Remove element.
Refit
5. Fit new element.
6. Fit O ring.
7. Position air cleaner cover, secure two clips to air
flow meter.
8. Secure four air cleaner cover clips.
