ANTI-ROLL[SWAY] BAR BALL JOINT LINKS
Service repair no - 60.10.04
Remove
1. Remove two nuts, bolts, washers and rubber
bushes from ball joint links.
2. Remove cotter pin and loosen castellated nut a
few turns.

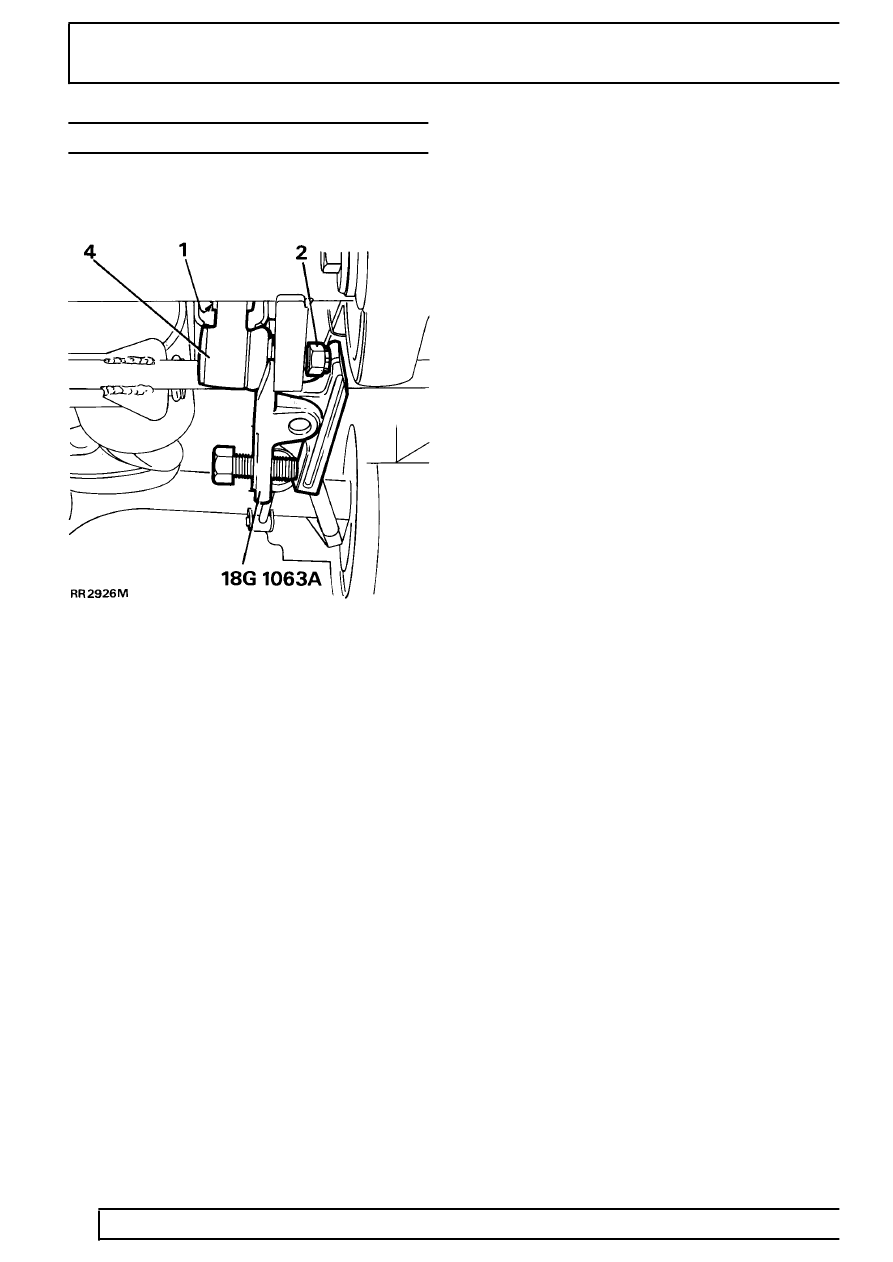

3. Release ball joint using special tool 18G 1063A
as shown.
4. Remove castellated nut and ball joint link.
Refit
5. Fit ball joint link and castellated nut. Ensure ball
joint link arm points up. Tighten to
40Nm and fit
new cotter pin.
6. Align anti-roll[sway] bar to ball joint links.
7. Fit bolts, washers and rubber bushes using new
self locking nuts secure anti-roll[sway] bar to ball
joint links. Tighten to
68Nm.
