Range Rover Classic
AIR SUSPENSION
11
REPAIR

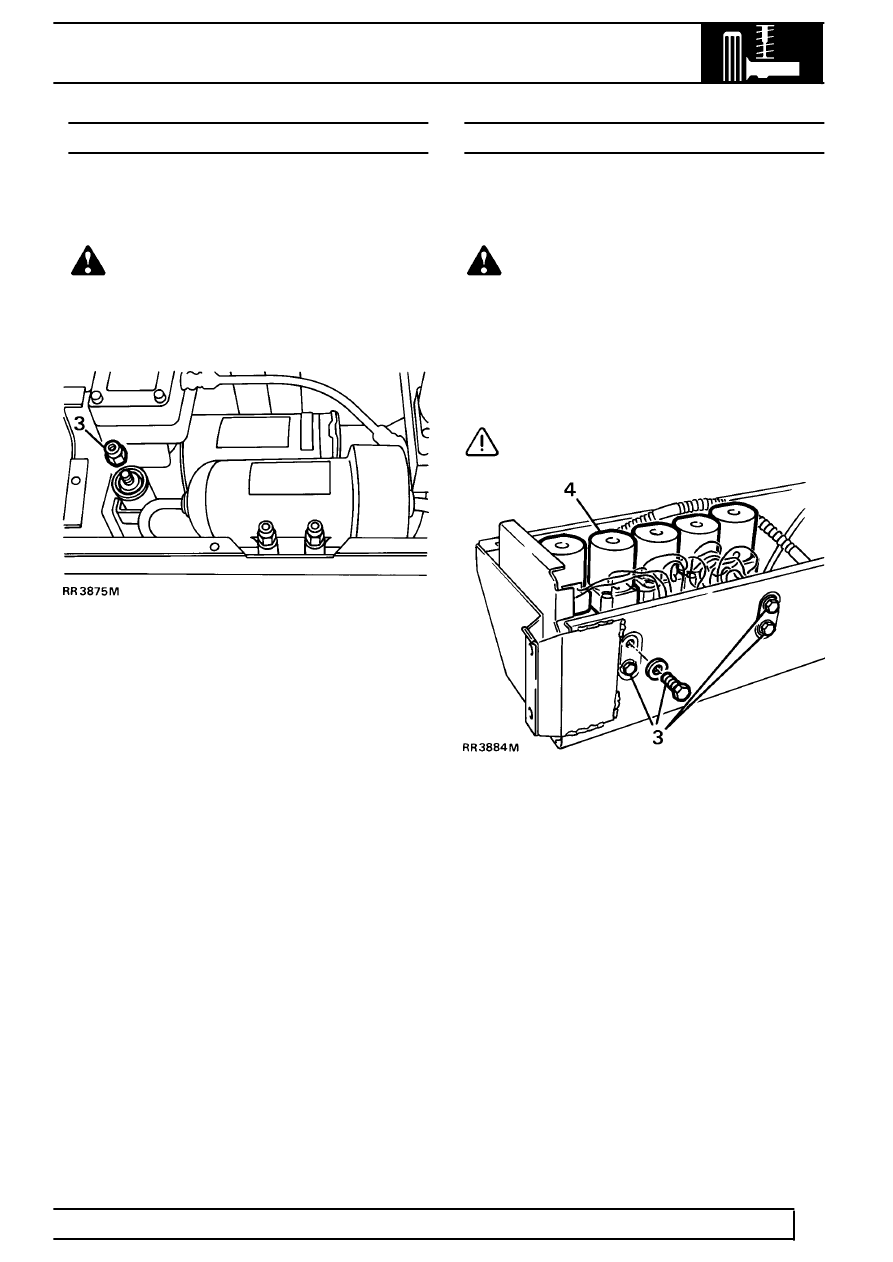

AIR COMPRESSOR
Service repair no - 60.50.10
Remove
WARNING: The air compressor assembly
becomes hot when running. Avoid
personal contact or allow to cool.
1. Remove air supply unit.
See Air Supply Unit
2. Remove compressor outlet pipe, seal all
exposed ends.
3. Remove four fixing nuts.
4. Remove compressor assembly.
Refit
5. Inspect compressor mountings, replace if
necessary.
6. Reverse removal procedure. Tighten nuts to
7Nm.
7. Check operation of compressor.
8. Leak test connections.
See Adjustment, Leak
Test Procedure
VALVE BLOCK
Service repair no - 60.50.11
Remove
WARNING: Air suspension is pressurised
up to 10 bar. Dirt or grease must not enter
the system. Wear hand, ear and eye safety
standard protection when servicing system.
1. Remove air supply assembly.
See Air Supply
Unit
2. Disconnect air pipes from valve block, seal all
pipe ends
See Disconnect/Connect Air Pipe
CAUTION: Air pipes must be refitted
correctly to avoid component damage.
3. Remove four fixing bolts.
4. Remove valve block assembly.
Refit
5. Reverse removal procedure.
6. Leak test connections.
See Adjustment, Leak
Test Procedure
