WIPERS AND WASHERS
4
REPAIR

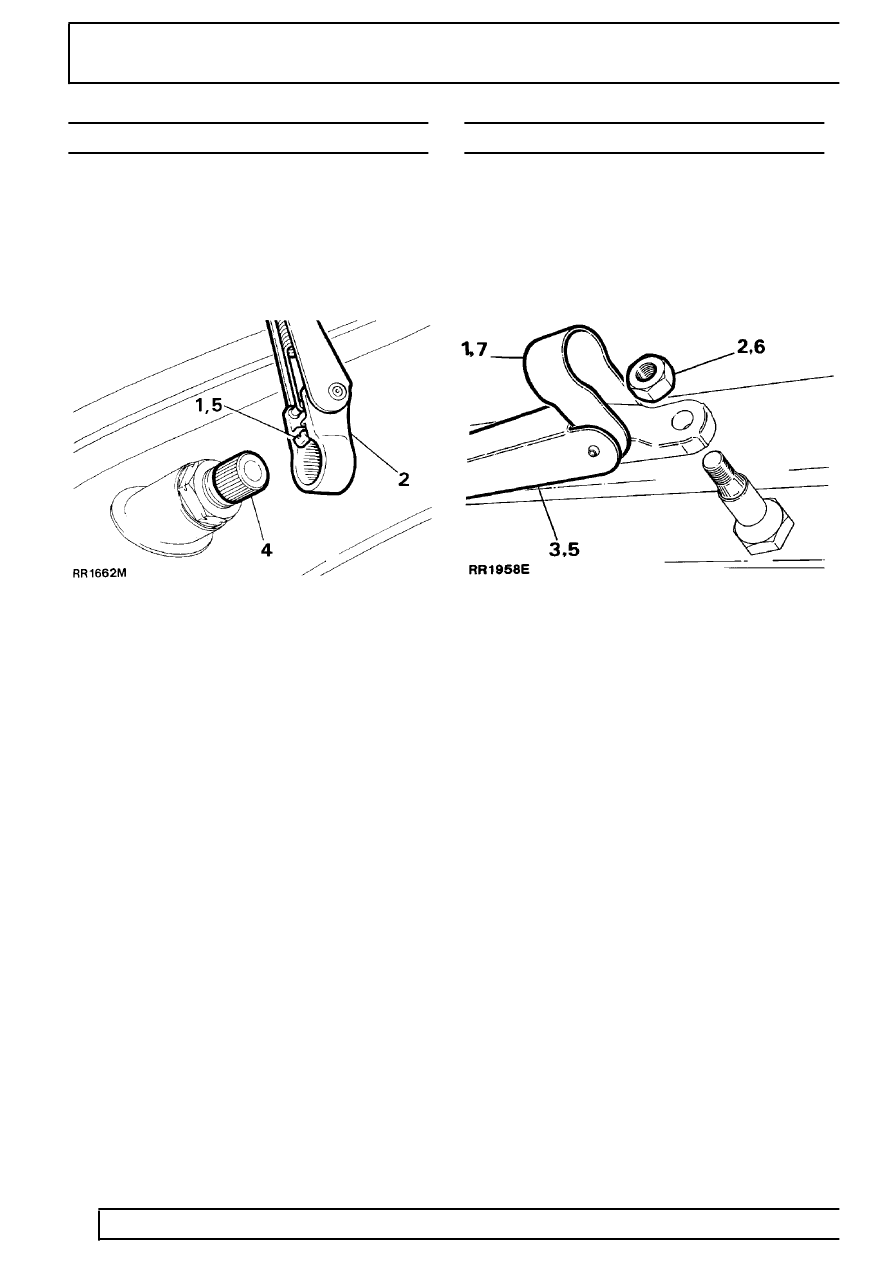

WIPER ARMS - WINDSCREEN
Service repair no - 85.15.01
Remove
1. Hold back small spring clip which retains wiper
arm on shaft boss using a suitable tool.
2. Gently pry off wiper arm from shaft boss.
Refit
3. Allow motor to move to ’park’ position.
4. Push arm on to boss, locating it on splines so
that wiper blades are clear of screen rail.
5. Ensure that spring retaining clip is located in
retaining groove on shaft boss.
6. Operate wiper on a wet screen to ensure blades
do not over travel.
WIPER ARM - TAILGATE
Service repair no - 84.35.01.
Remove
1. Lift wiper arm end cap to access wiper motor
shaft.
2. Remove wiper arm securing nut.
3. Withdraw wiper arm from shaft.
Refit
4. Allow motor to move to ’park’ position.
5. Fit wiper arm to shaft,locating it on the splines so
that wiper blade is clear of screen surround.
6. Fit and tighten securing nut.
7. Push end cap back into position.
8. Check correct operation of wiper.
