HEATER BLOWER

Service repair no - 80.20.12

Remove

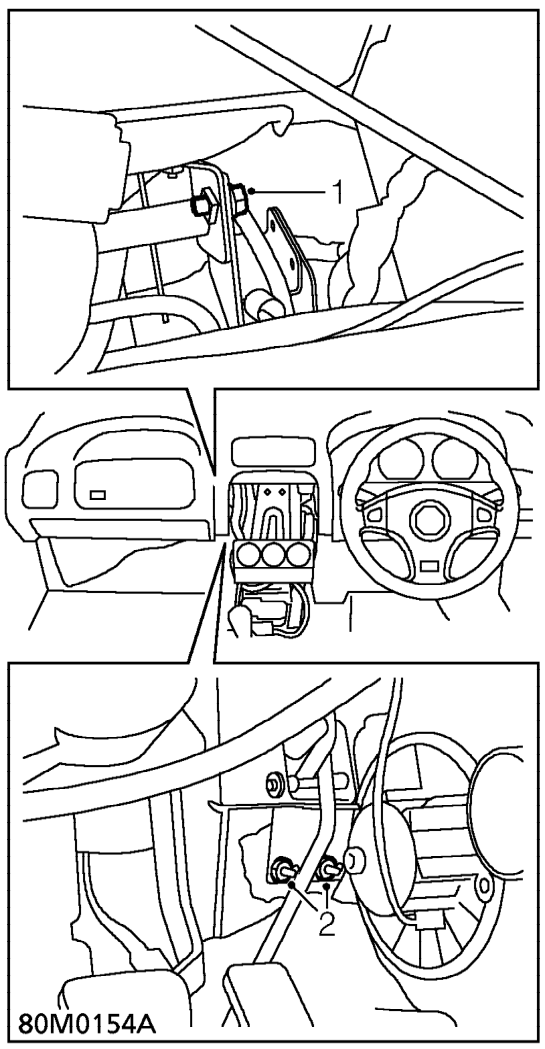

Heater blower – Service repair no - 80.20.12
  1. Remove bolt securing throttle pedal bracket to pedal box.
  2. Remove 2 nuts securing throttle pedal bracket to bulkhead and position throttle pedal assembly aside.
  3. Remove heater duct.

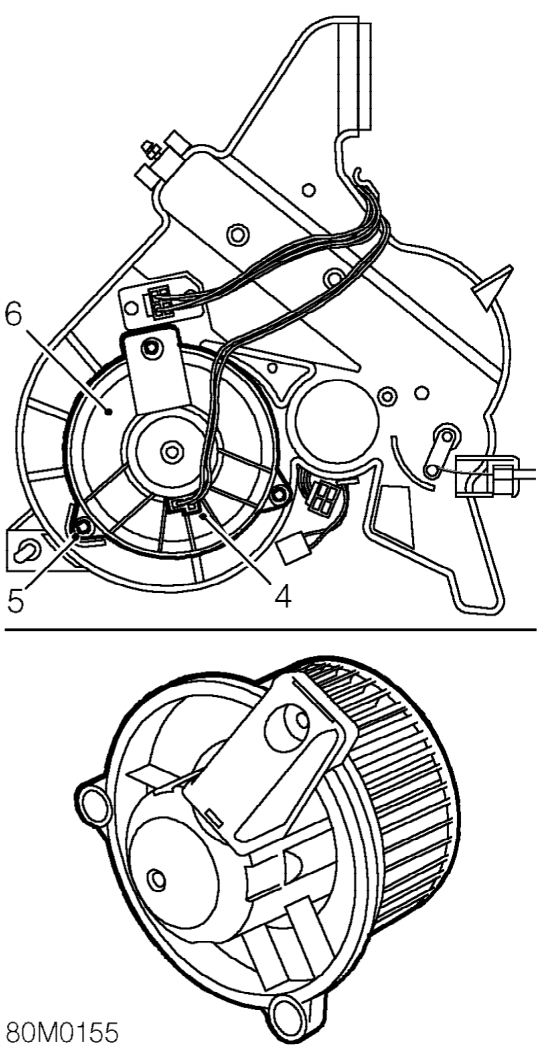

Heater blower – Remove heater duct.
  1. Disconnect multiplug from heater blower.
  2. Remove 3 screws securing blower to heater.
  3. Remove heater blower.
  4. Release armature cover and collect sleeve.

Refit

  1. Position screw and sleeve to top location of heater blower.
  2. Position blower to heater and secure with screws.

CAUTION: Ensure screw sleeve does not fall into blower motor.

  1. Connect multiplug to blower.
  2. Fit heater duct.
  3. Position throttle pedal assembly, fit and tighten nuts to 6 Nm.
  4. Fit and tighten bolt to 22 Nm.
