MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Face level vent - LH

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Face level vent - LH
Heating and ventilationFace level vent - LH

FACE LEVEL VENT - LH

Service repair no - 80.15.05

Remove

  1. Remove glovebox. See BODY, Interior trim components.

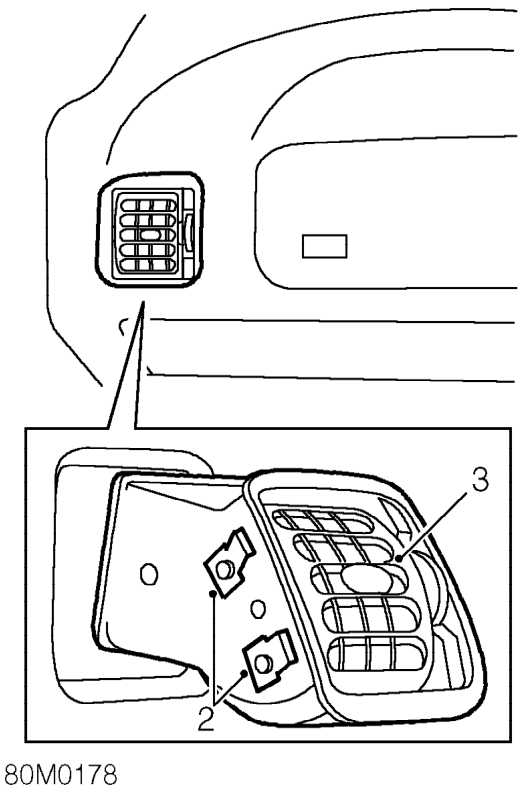

Face level vent - lh – Remove glovebox. See BODY, Interior trim components.
  1. Release 4 clips securing vent to fascia.
  2. Remove vent.

Refit

  1. Fit vent to fascia and engage clips.
  2. Fit glovebox. See BODY, Interior trim components.

FACE LEVEL VENT - CENTRE

Service repair no - 80.15.63

Remove

  1. Remove centre console panel. See BODY, Interior trim components.

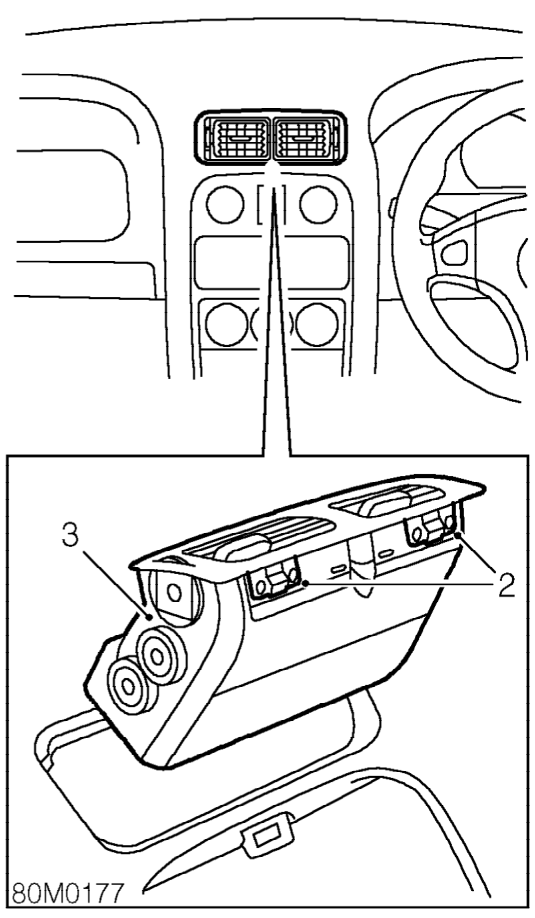

Face level vent - centre – Remove centre console panel. See BODY, Interior trim components.
  1. Release 4 clips securing vent to fascia.
  2. Remove vent.

Refit

  1. Fit vent to fascia and engage clips.
  2. Fit centre console panel. See BODY, Interior trim components.
