MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Recirculation servo motor

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Recirculation servo motor
Heating and ventilationRecirculation servo motor

Refit

  1. Position heater to mountings.
  2. Tighten all fixings to 10 Nm.
  3. Connect multiplug to heater blower.
  4. Connect hoses to heater matrix and secure with clips.
  5. Position valve and secure with screws.
  6. Fit screen duct.
  7. Connect multiplugs to control unit.
  8. Position control cables and connect to control unit.
  9. Align cable outers to control unit and tighten clamp screws.

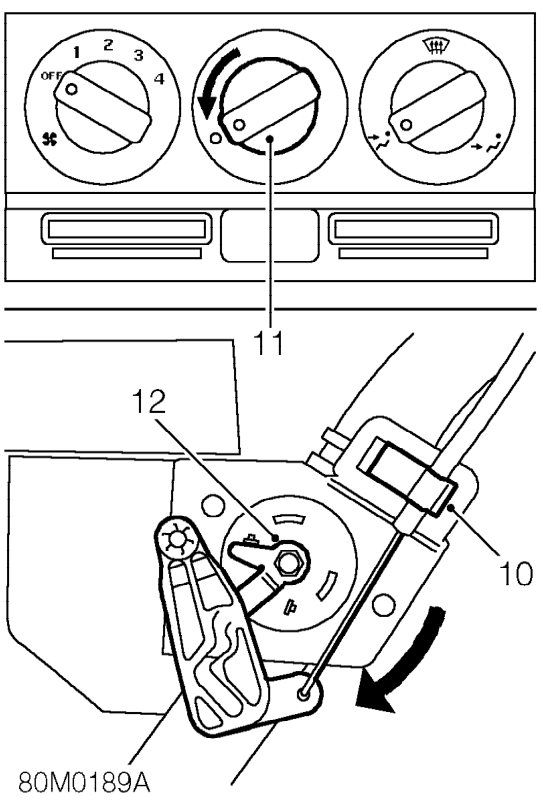

Align cable outers to control unit and tighten clamp screws.
  1. Release clip securing cable outer to heater valve.
  2. Turn temperature control to COLD.
  3. Push heater control valve to the COLD position and secure cable clip.
  4. Refill cooling system. See COOLING SYSTEM, Adjustments.
  5. Position alarm ECU to heater control, fit and tighten nuts to 4 Nm.
  6. Fit evaporator. See AIR CONDITIONING, Repairs.

RECIRCULATION SERVO MOTOR

Service repair no - 80.20.10

Remove

  1. Remove glovebox. See BODY, Interior trim components.

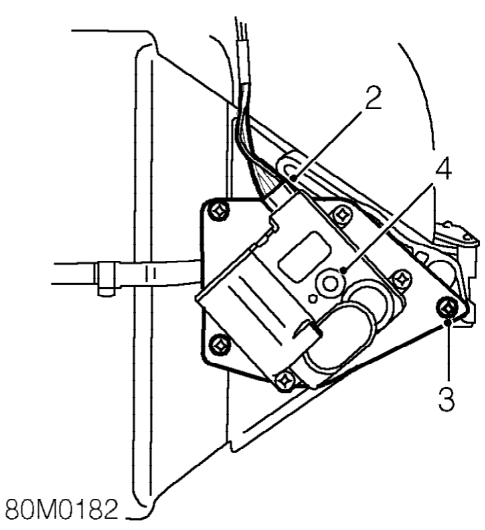

Recirculation servo motor – Remove glovebox. See BODY, Interior trim components.
  1. Disconnect multiplug from servo motor.
  2. Remove 3 screws securing servo motor to evaporator casing.
  3. Remove servo motor.

Refit

  1. Position servo motor and engage output crank to recirculation flap lever.
  2. Secure servo motor with screws.
  3. Connect multiplug.
  4. Fit glovebox. See BODY, Interior trim components.
