MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Heater fan switch

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Heater fan switch
Heating and ventilationHeater fan switch

Refit

  1. Fit valve to lower hose and secure with clip.
  2. Position upper hose to valve and secure with clip.
  3. Engage cable to valve lever.
  4. Position valve to heater assembly and secure with screws.

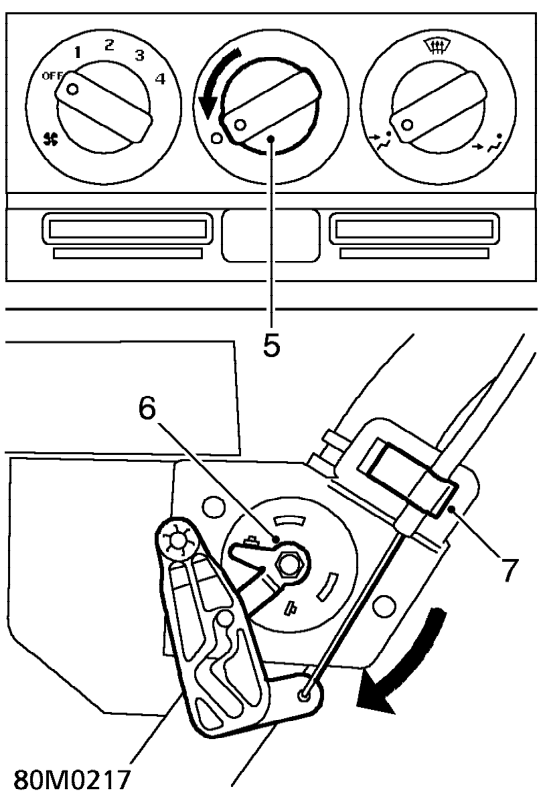

Position valve to heater assembly and secure with screws.
  1. Turn heater control fully to ’COLD’.
  2. Turn valve lever fully clockwise.
  3. Position cable outer and secure with clip.
  4. Fit console closing panels. See BODY, Interior trim components.
  5. Refill coolant system. See COOLING SYSTEM, Adjustments.

HEATER FAN SWITCH

Service repair no - 80.10.22

Remove

  1. Remove front console. See BODY, Interior trim components.

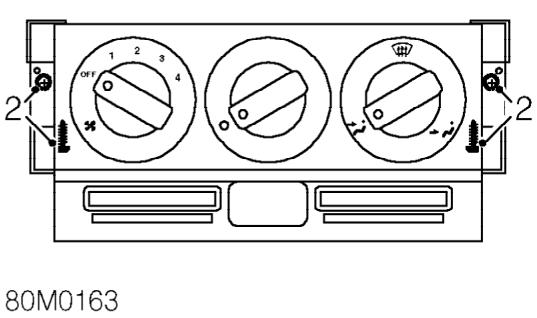

Heater fan switch – Remove front console. See BODY, Interior trim components.
  1. Remove 4 screws securing heater control unit to fascia and position control unit aside.

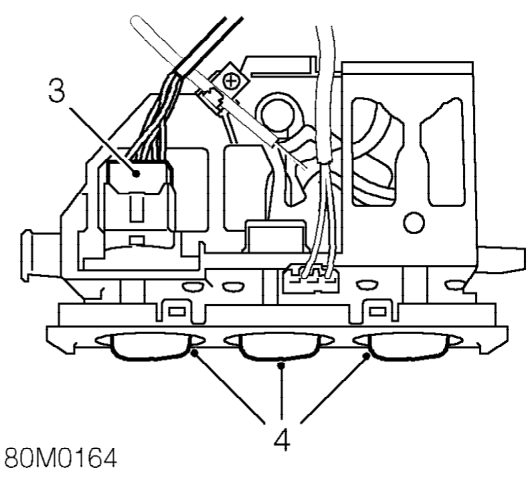

Heater fan switch – Remove 4 screws securing heater control unit to fascia and position control unit aside.
  1. Disconnect multiplug from control unit.
  2. Remove 3 knobs from control assembly.
