Heating and ventilationHeater resistor

HEATER RESISTOR

Service repair no - 80.20.17

Remove

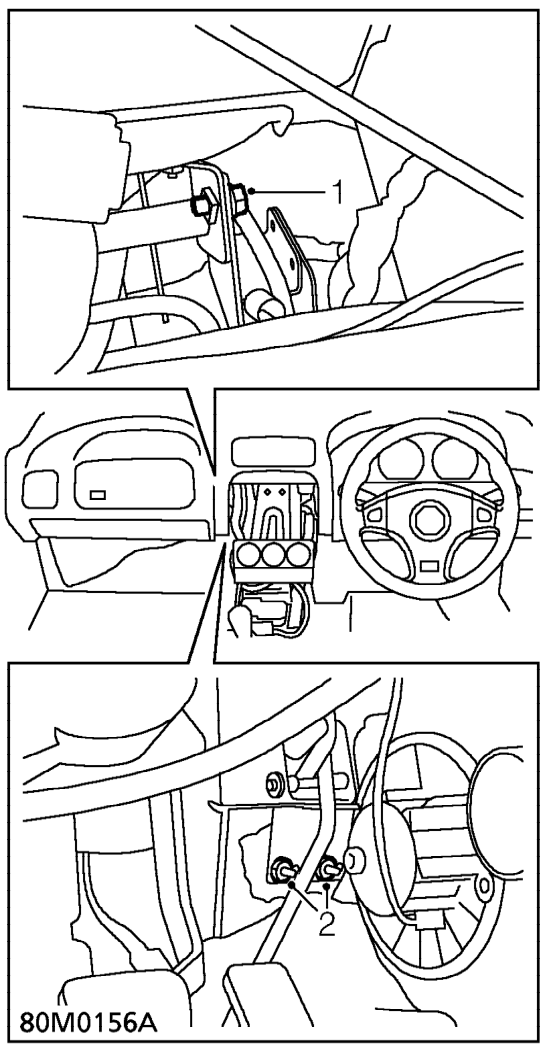

Heater resistor – Service repair no - 80.20.17
  1. Remove bolt securing throttle pedal bracket to pedal box.
  2. Remove 2 nuts securing throttle pedal bracket to bulkhead and position throttle pedal assembly aside.

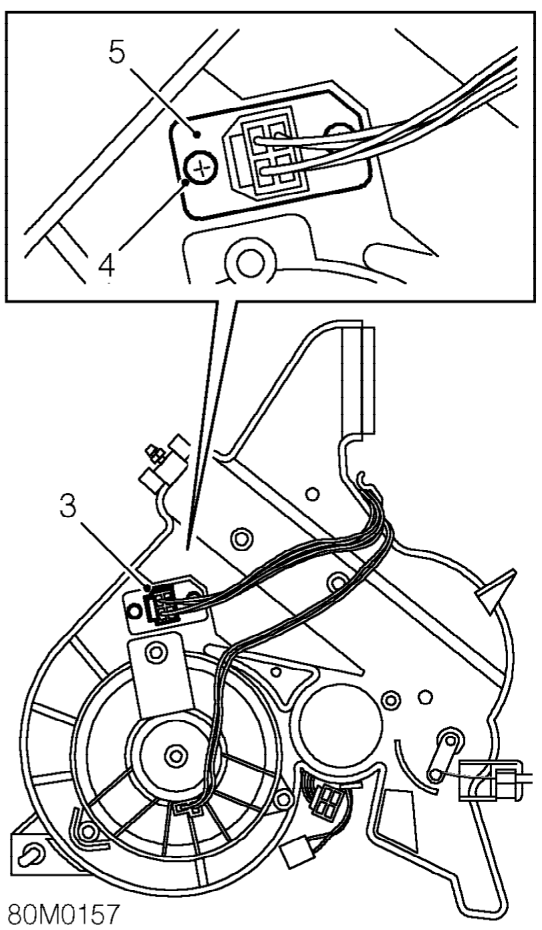

Heater resistor – Remove 2 nuts securing throttle pedal bracket to bulkhead and position throttle pedal asse
  1. Disconnect multiplug from resistor.
  2. Remove 2 screws securing resistor.
  3. Remove heater resistor.

Refit

  1. Position resistor to heater and secure with screws.
  2. Connect resistor multiplug.
  3. Position throttle pedal assembly, fit and tighten nuts to 6 Nm.
  4. Fit and tighten bolt to 22 Nm.
