Heating and ventilationHeater - with air conditioning · page 1 of 3

HEATER - WITH AIR CONDITIONING

Service repair no - 80.20.01/20

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe See GENERAL INFORMATION, SRS Precautions.
  2. Remove evaporator. See AIR CONDITIONING, Repairs.
Heater - with air conditioning – Remove evaporator. See AIR CONDITIONING, Repairs.

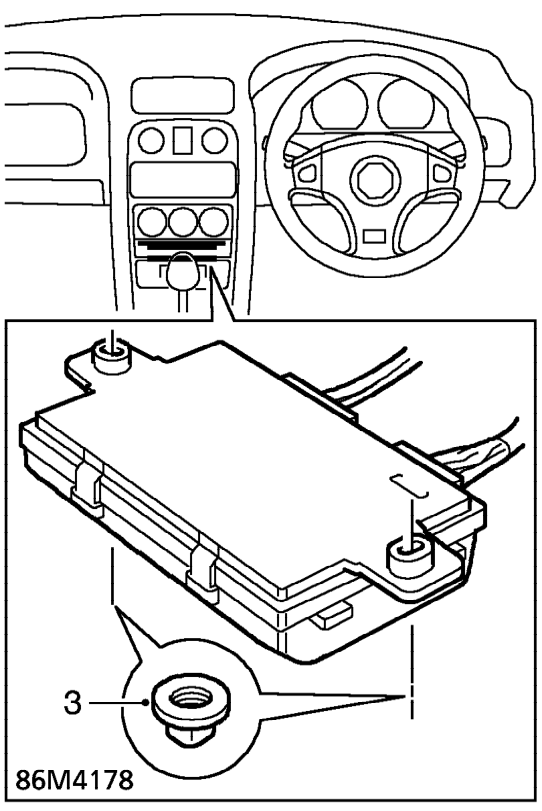

  1. Remove 2 nuts securing anti-theft alarm ECU to heater control, position ECU aside.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
Heater - with air conditioning – Drain cooling system. See COOLING SYSTEM, Adjustments.

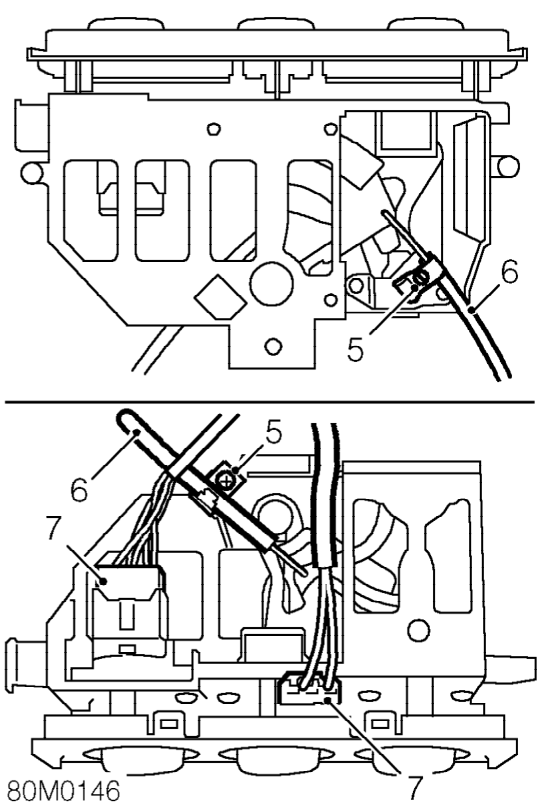

  1. Remove 2 screws retaining outer cables to control unit.
  2. Release cables from control unit.
  3. Disconnect 2 multiplugs and remove control unit.
  4. Remove screen duct from heater.
