MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Heater - with air conditioning (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Heating and ventilationHeater - with air conditioning · page 2 of 3
Diagram

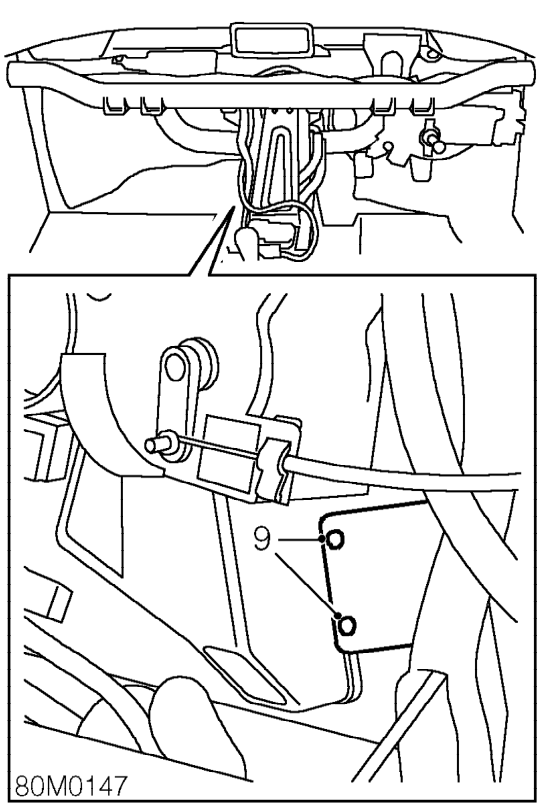

  1. Remove 2 screws securing valve to heater casing.
  2. Position container beneath heater to catch spillage.
Position container beneath heater to catch spillage.

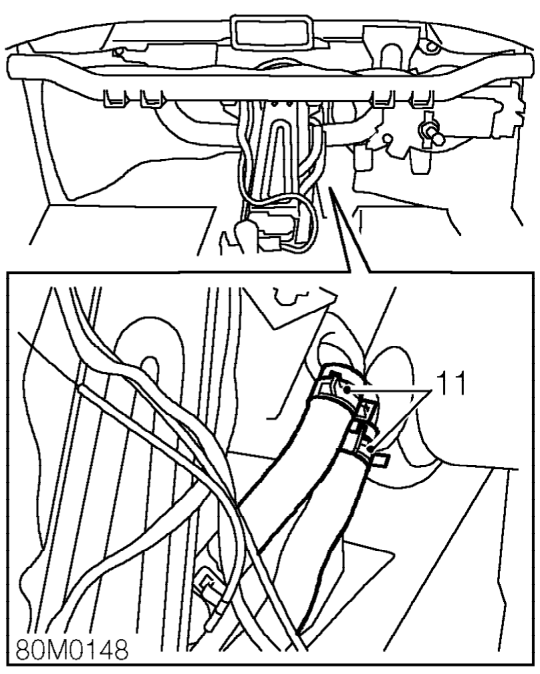

  1. Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.
Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.

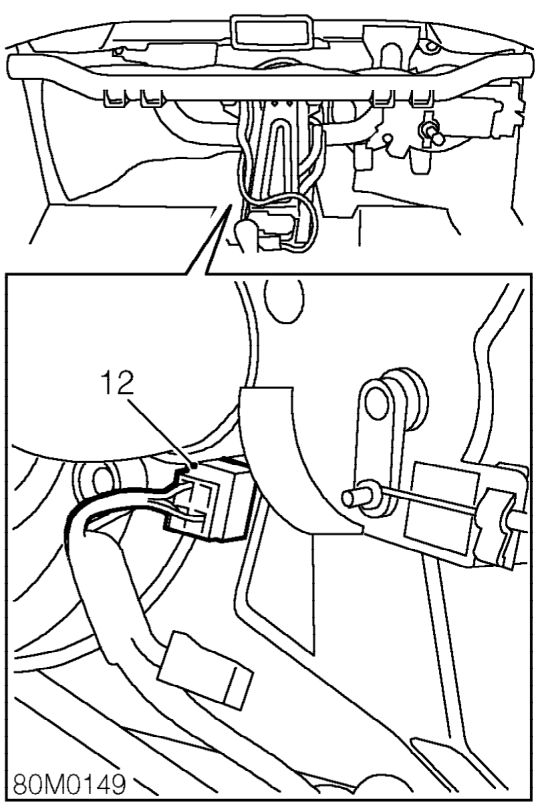

  1. Disconnect multiplug from heater blower.
