Heating and ventilationHeater matrix

HEATER MATRIX

Service repair no - 80.20.29

Remove

  1. Remove heater. See this section.
Heater matrix – Remove heater. See this section.

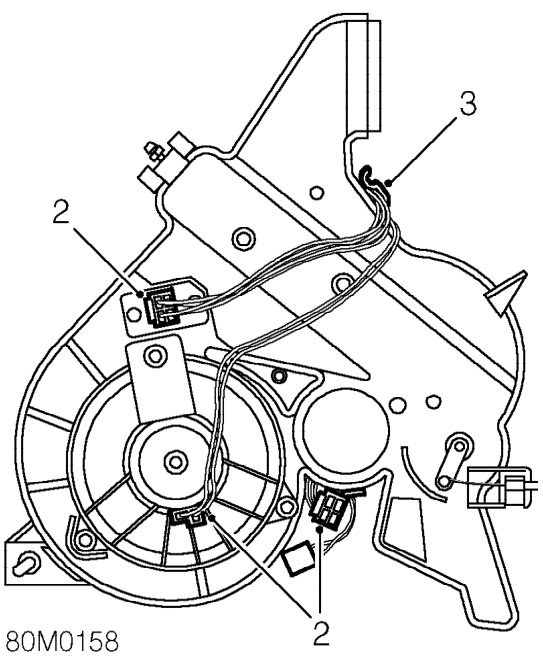

  1. Disconnect multiplugs from blower and resistor.
  2. Release harness from 2 clips and position aside.
Heater matrix – Release harness from 2 clips and position aside.

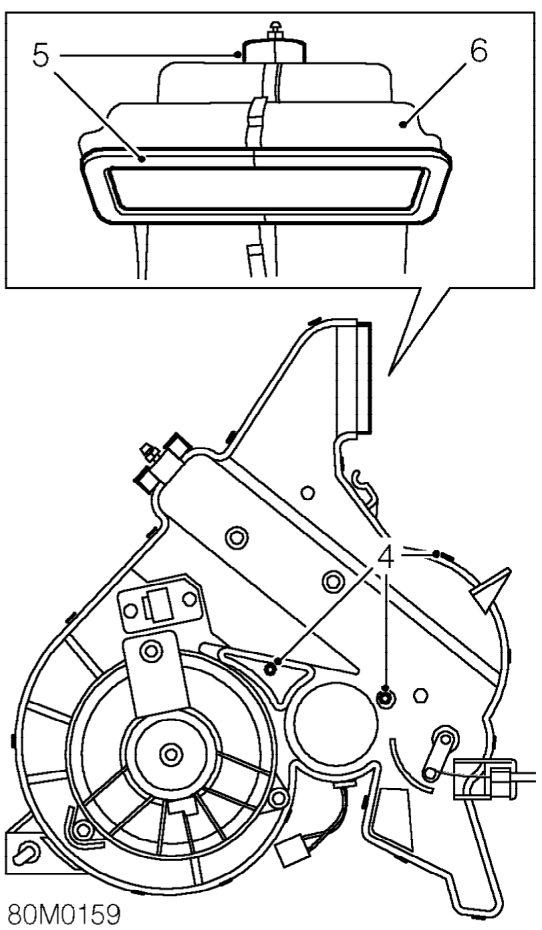

  1. Remove 15 clips and 2 screws securing two halves of casing.
  2. Remove foam seal from outlet vent and matrix bleed nipple.
  3. Separate two halves of casing.
  4. Remove heater matrix.

Refit

  1. Position matrix to heater.
  2. Position two halves of casing, ensuring correct location of flow direction flap.
  3. Secure casing halves with clips and screws.
  4. Clean sealing faces.
  5. Fit foam seals to outlet vent and bleed nipple.
  6. Engage harness clips and connect multiplugs.
  7. Fit heater. See this section.
