Heating and ventilationAir intake panel · page 1 of 4

AIR INTAKE PANEL

Service repair no - 80.15.62

Remove

  1. Remove wiper arms. See WIPERS & WASHERS, Repairs.

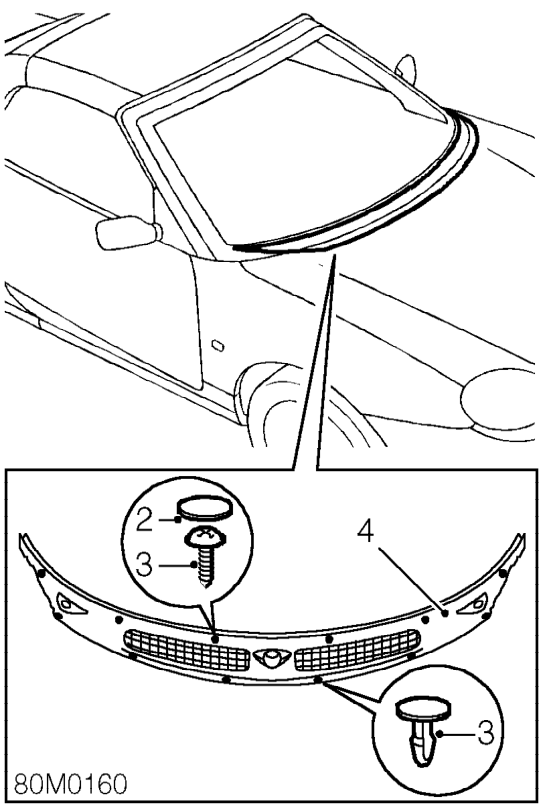

Air intake panel – Remove wiper arms. See WIPERS & WASHERS, Repairs.
  1. Remove 6 retaining screw caps from intake moulding.
  2. Remove 6 screws and 6 clips securing panel to scuttle.
  3. Release intake panel from clips and remove panel.

Refit

  1. Position panel to scuttle and secure with clips and screws.
  2. Fit screw caps.
  3. Fit wiper arms. See WIPERS & WASHERS, Repairs.

HEATER

Service repair no - 80.20.01

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe See GENERAL INFORMATION, SRS Precautions.
  2. Remove fascia. See BODY, Interior trim components.
Heater – Remove fascia. See BODY, Interior trim components.
  1. Remove 2 nuts securing anti-theft alarm ECU to heater control unit, position ECU aside.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
