MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Air intake panel (page 2 of 4)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Heating and ventilationAir intake panel · page 2 of 4
Diagram

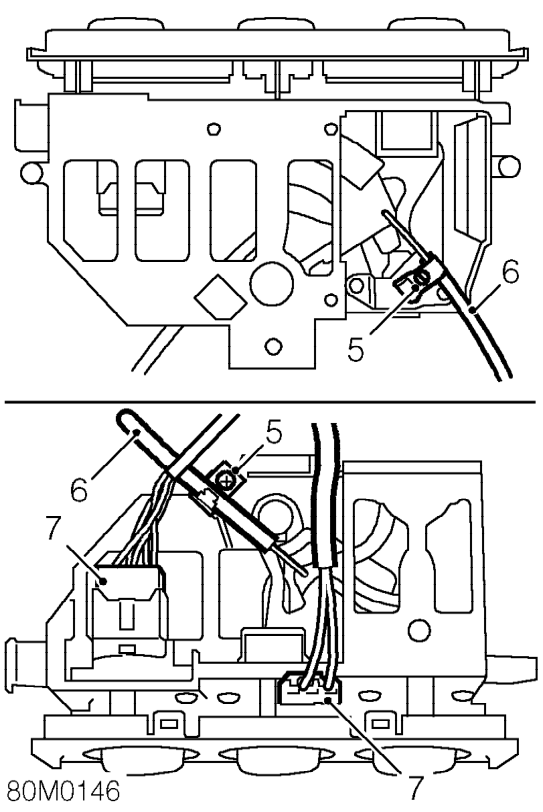

  1. Remove 2 screws retaining outer cables to control unit.
  2. Release cables from control unit.
  3. Disconnect 2 multiplugs and remove control unit.
  4. Remove 2 screen ducts from heater.

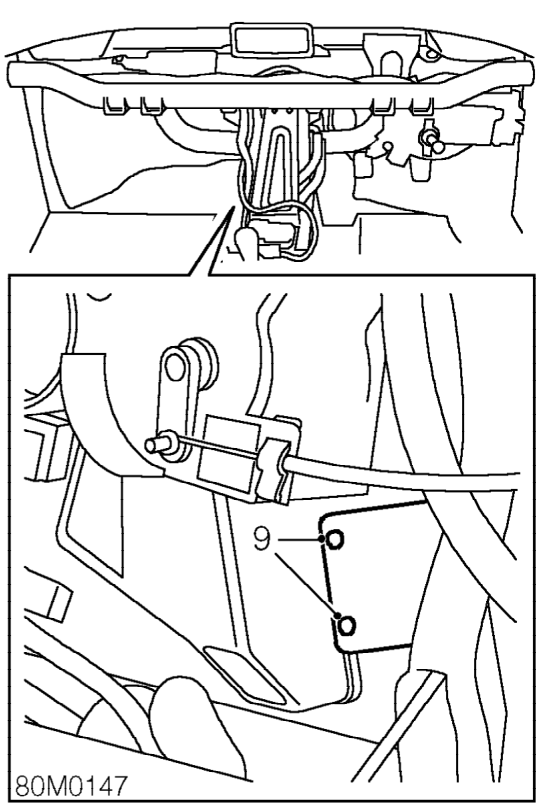

Remove 2 screen ducts from heater.
  1. Remove 2 screws securing valve to heater casing.
  2. Position container beneath heater to catch spillage.

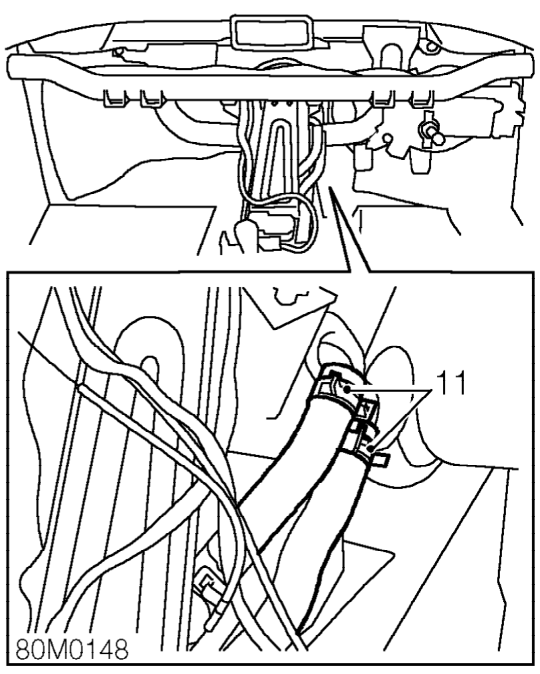

Position container beneath heater to catch spillage.
  1. Release clips and disconnect both hoses from heater matrix. Allow matrix to drain.
