MG TF Factory Workshop Manual (2002-2005)19 · Heating and ventilation
19 · Heating & A/C

Air intake panel (page 3 of 4)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Heating and ventilationAir intake panel · page 3 of 4
Diagram

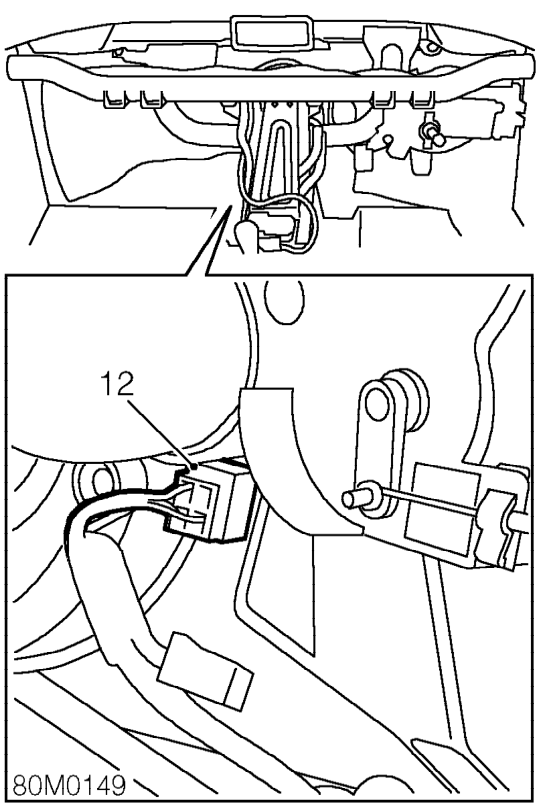

  1. Disconnect multiplug from heater blower.
Disconnect multiplug from heater blower.

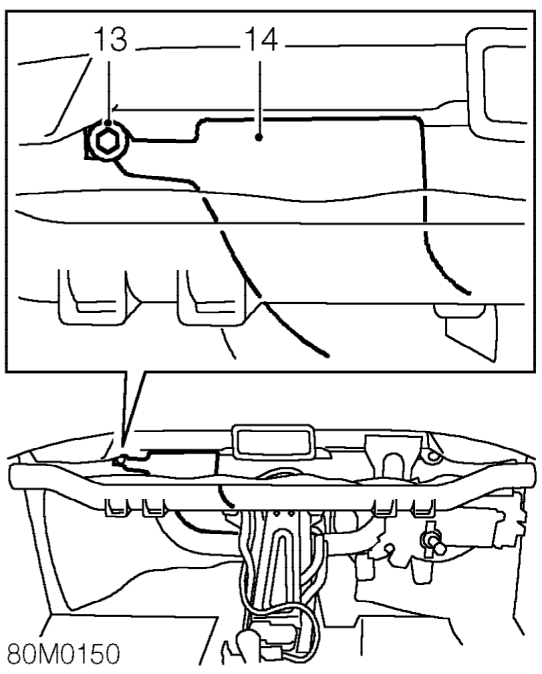

  1. Remove nut securing intake duct to body.
  2. Remove intake duct.
Remove intake duct.

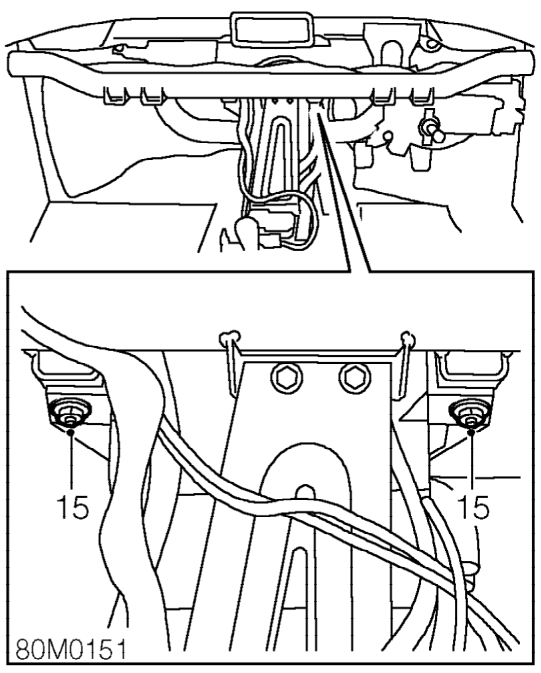

  1. Remove 2 nuts securing heater unit to crossmember.
