Heating and ventilationFace level vent - RH

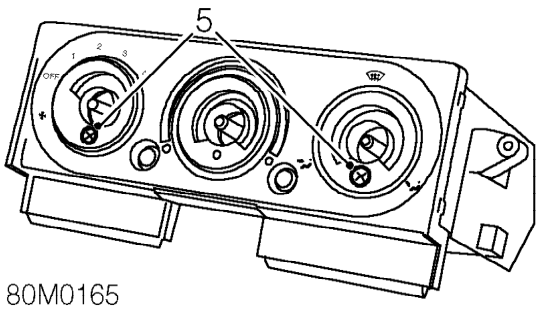

Diagram
  1. Remove 2 screws securing illumination housing to assembly and remove housing.

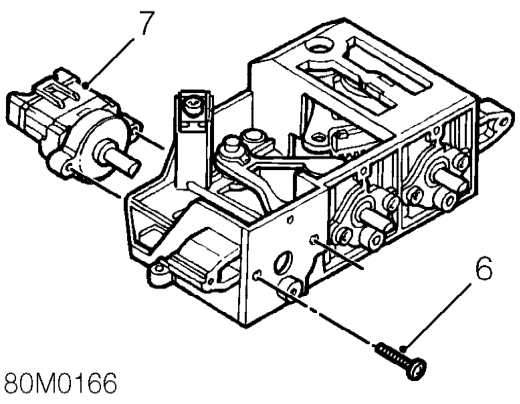

Remove 2 screws securing illumination housing to assembly and remove housing.
  1. Remove 2 screws securing fan switch to assembly.
  2. Remove switch.

Refit

  1. Position switch to assembly and secure with screws.
  2. Position illumination housing to assembly and secure with screws.
  3. Fit control knobs.
  4. Connect multiplug.
  5. Position control unit to fascia and secure with screws.
  6. Fit front console. See BODY, Interior trim components.

FACE LEVEL VENT - RH

Service repair no - 80.15.04

Remove

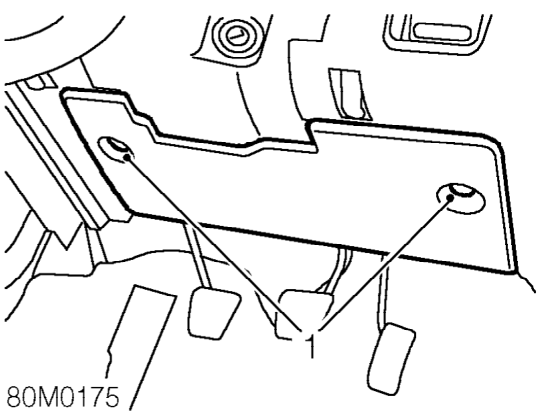

Face level vent - rh – Service repair no - 80.15.04
  1. Turn clips securing fuse box cover1/4 turn and open cover.

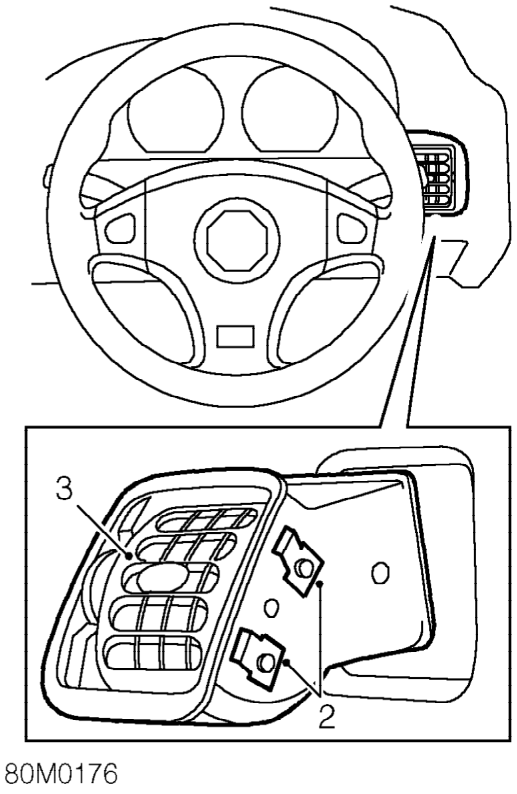

Face level vent - rh – Turn clips securing fuse box cover1/4 turn and open cover.
  1. Release 4 clips securing vent to fascia.
  2. Remove vent.

Refit

  1. Fit vent to fascia and engage clips.
  2. Close fuse box cover and secure with clips.
