04 · Engine

Cylinder head gasket (page 3 of 9)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineCylinder head gasket · page 3 of 9
Diagram

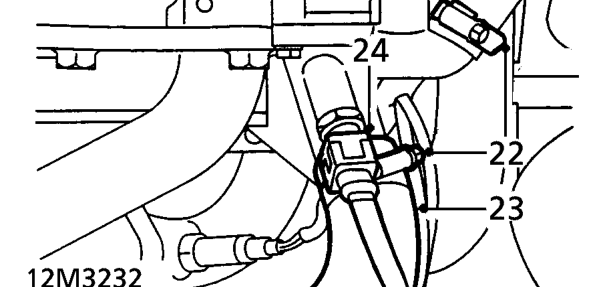

  1. Loosen clips securing coolant hoses to coolant outlet elbow.
  2. Disconnect coolant hoses from outlet elbow.

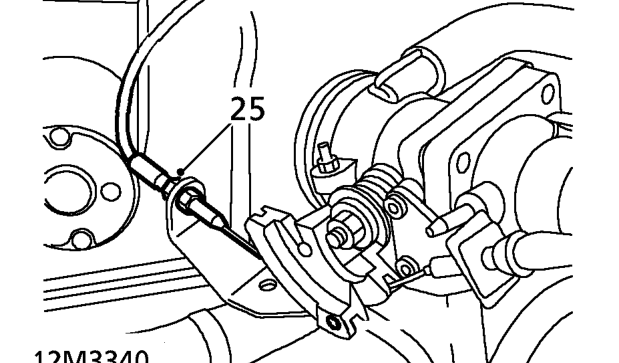

  3. Disconnect multiplugs from coolant sensors on outlet elbow.
Disconnect multiplugs from coolant sensors on outlet elbow.

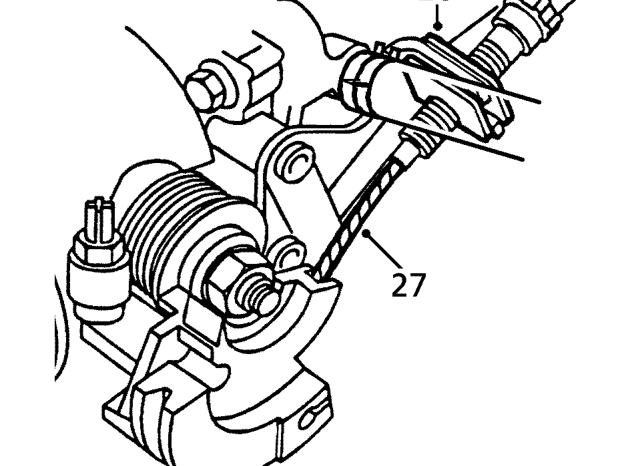

  1. Automatic Models: Loosen locknut, release kickdown cable from abutment bracket and disconnect inner cable from throttle cam.
Automatic Models: Loosen locknut, release kickdown cable from abutment bracket and disconn
  1. Release throttle cable adjusting nut from abutment bracket.
  2. Release throttle cable from throttle cam.
Release throttle cable from throttle cam.

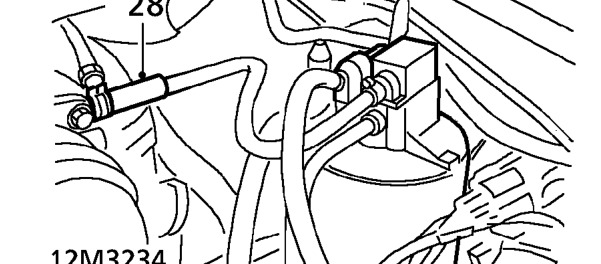

  1. Disconnect evaporative emission canister vacuum pipe from inlet manifold.
