Cylinder head gasket (page 6 of 9)

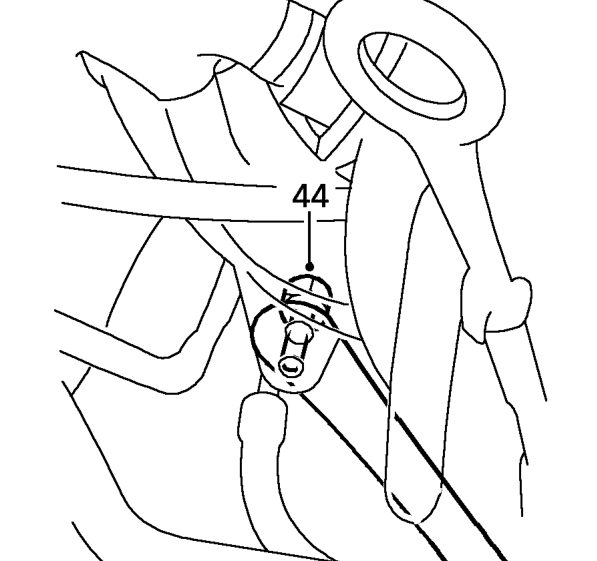

44. Remove bolt securing inlet manifold to support bracket.

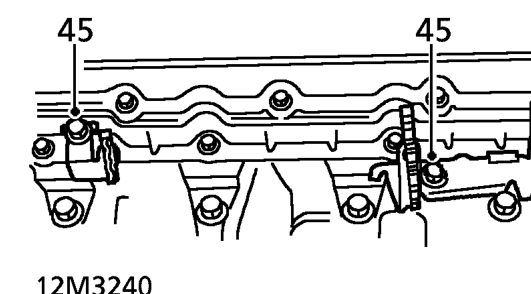

45. Remove 3 bolts securing both h.t. lead guide brackets to cylinder head.
46. Remove 2 brackets.

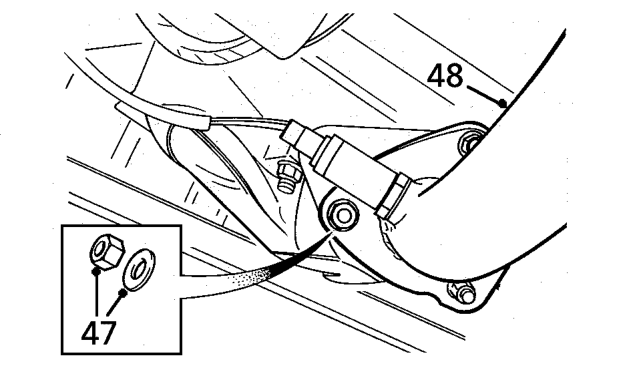

47. Remove 3 nuts securing exhaust front pipe to manifold.
48. Release front pipe from manifold, remove and discard gasket.

CAUTION: DO NOT allow front pipe to hang on oxygen sensor lead.

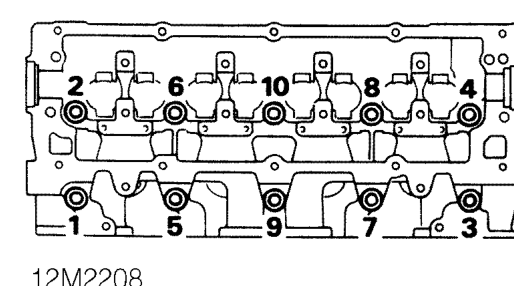

49. Remove 10 cylinder head bolts in sequence shown. Remove bolts and store in fitted order.
50. Using assistance, move timing belt back plate aside and remove cylinder head assembly from cylinder block.
51. Remove cylinder head gasket from cylinder block and discard.
