Rover 100 Repair Manual Supplement (1996-1998)04 · Engine
04 · Engine

Cylinder head gasket (page 5 of 9)

Make
Rover
Model
100 Repair Manual Supplement
Year
1996–1998
Section
Repairs
EngineCylinder head gasket · page 5 of 9

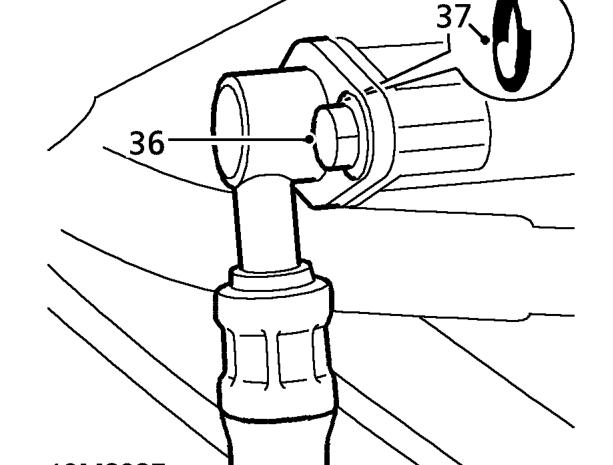

Diagram
  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Remove fuel feed pipe from fuel rail and discard ’O’ ring.

CAUTION: Plug the connections.

Remove fuel feed pipe from fuel rail and discard ’O’ ring.

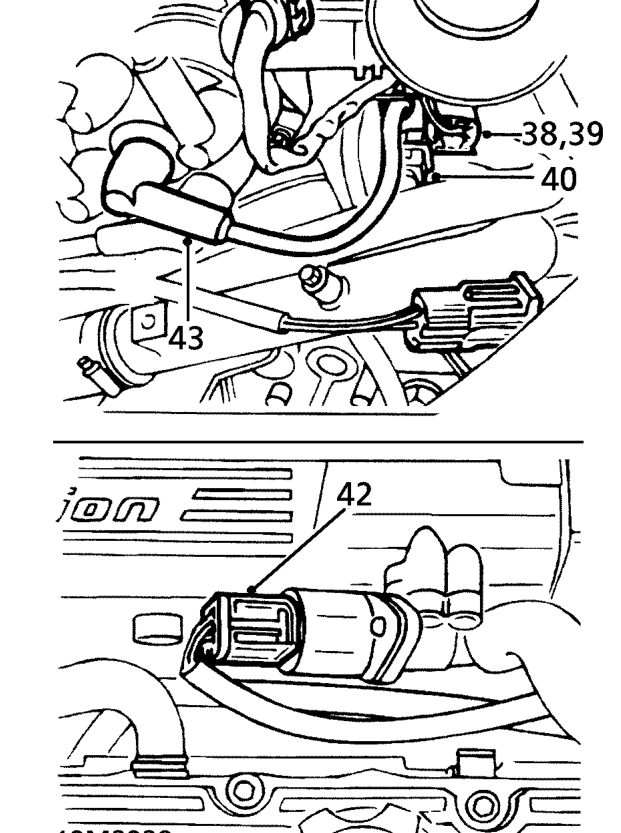

  1. Release injector harness multiplug from bracket on throttle body.
  2. Disconnect multiplug from injector harness.
  3. Disconnect multiplug from IAT sensor.
  4. Disconnect multiplug from TP sensor.
  5. Disconnect multiplug from IACV.
  6. Disconnect coil h.t. lead from distributor.
