Camshaft rear belt cover

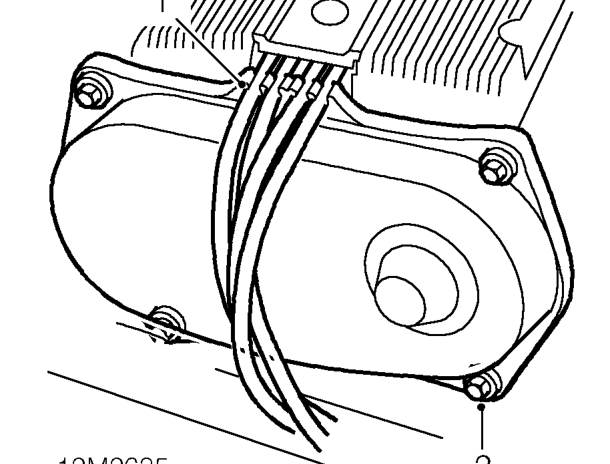

CAMSHAFT REAR BELT COVER

Service repair no - 12.65.46

Remove

1. Release 4 h.t. leads from camshaft rear belt cover.
2. Remove 4 bolts securing cover to cylinder head.
3. Remove camshaft belt cover.

Refit

1. Fit camshaft rear belt cover to cylinder head.
2. Fit bolts and tighten to 10 Nm.
3. Secure h.t. leads to clips on cover.

CAMSHAFT REAR TIMING BELT

Service repair no - 12.65.56

Remove

CAUTION: Timing belts must be replaced if cylinder head is to be removed or new timing gears are to be fitted. Timing belts must be stored and handled with care. Always store a timing belt on its edge with a bend radius greater than 50 mm. Do not use a timing belt that has been twisted or bent double as this can damage the reinforcing fibres. Do not use a timing belt if debris other than belt dust is found in timing cover. Do not use a timing belt if partial engine seizure has occured. Do not use a timing belt if belt mileage exceeds 48,000 (77,000 Km). Do not use an oil or coolant contaminated timing belt.

NOTE: The cause of contamination MUST be rectified.

1. Disconnect battery earth lead.
2. Remove camshaft timing belt upper cover. See this section.
3. Remove camshaft rear belt cover. See this section.
