Engine - K16 with VVCOil pump

OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
  2. Remove crankshaft gear.
Oil pump – Remove crankshaft gear.
  1. Remove 2 bolts securing engine harness to oil pump.
  2. Remove and discard 9 bolts securing oil pump to cylinder block.

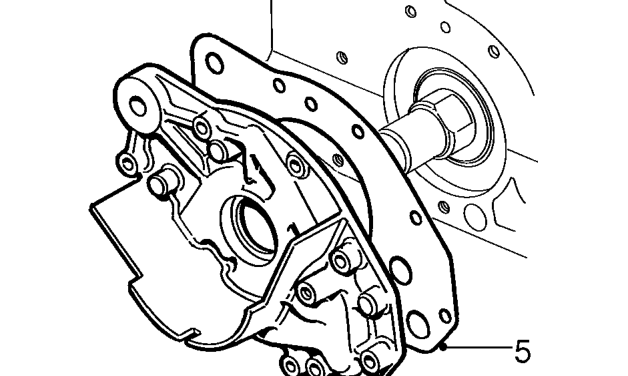

Oil pump – Remove and discard 9 bolts securing oil pump to cylinder block.
  1. Remove oil pump and discard gasket.

Refit

  1. Clean oil pump bolt holes in cylinder block.
  2. Clean mating surfaces of oil pump and cylinder block.
  3. Clean oil seal running surface on crankshaft.
  4. Fit new oil pump gasket to cylinder block and position oil pump.

CAUTION: Do not lubricate crankshaft front oil seal or running surface of crankshaft.

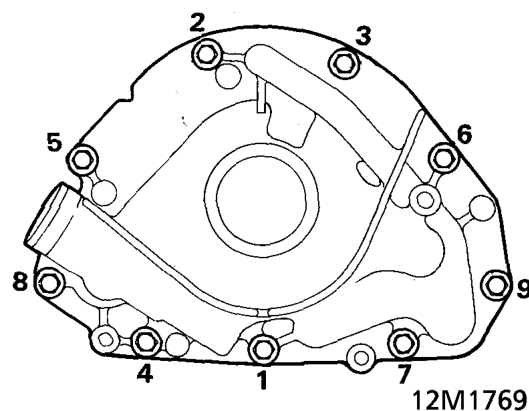

Oil pump – Fit new oil pump gasket to cylinder block and position oil pump.
  1. Fit new Patchlok bolts and tighten in sequence shown to 10 Nm.
  2. Align engine harness to oil pump, fit bolts and tighten to 10 Nm.
  3. Clean crankshaft gear.
  4. Fit gear to crankshaft.
  5. Fit camshaft timing belt. See this section.
