Engine - K16 with VVCExhaust camshaft rear oil seal

EXHAUST CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.08

Remove

  1. Remove and discard camshaft rear timing belt. See this section.
Exhaust camshaft rear oil seal – Remove and discard camshaft rear timing belt. See this section.

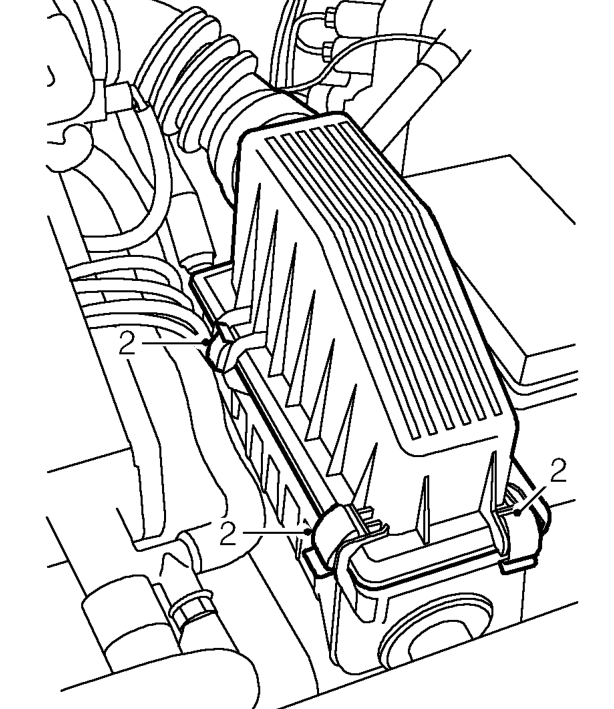

  1. Release 4 clips securing 2 halves of air cleaner together and position top half aside.
Exhaust camshaft rear oil seal – Release 4 clips securing 2 halves of air cleaner together and position top half aside.

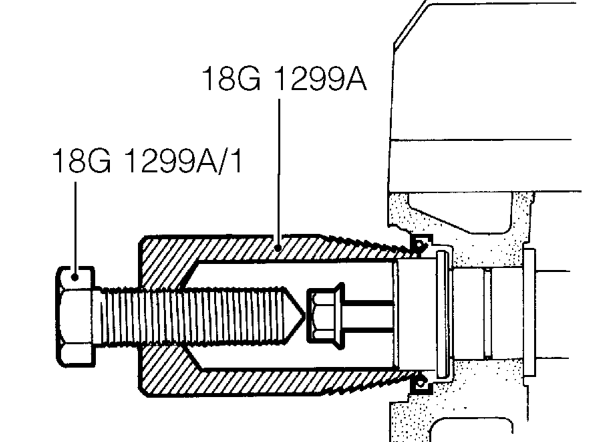

  1. Fit camshaft timing belt gear bolt to camshaft and screw tool 18G 1299A into seal.
  2. Remove oil seal by tightening centre bolt of tool 18G 1299A-1.

Refit

  1. Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are removed. Do not scrape sealing surfaces.
Exhaust camshaft rear oil seal – Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are remove

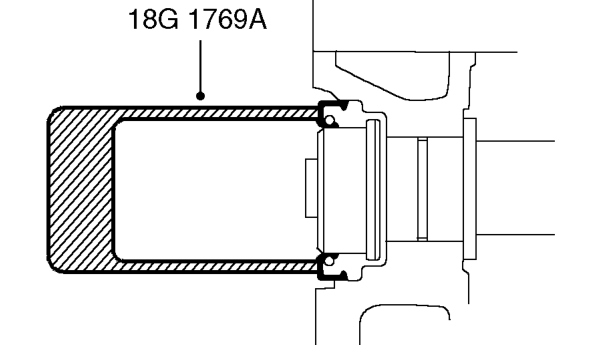

  1. Fit new camshaft oil seal using tool 18G 1769A.

NOTE: This oil seal is coloured RED.

CAUTION: Oil seal must be fitted dry. Do not use tool 18G 1769.
