Rover 200 Workshop Manual (1995-1999)07 · Engine - K16 with VVC
07 · Engine

Crankshaft front oil seal

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Crankshaft front oil seal
Engine - K16 with VVCCrankshaft front oil seal

Refit

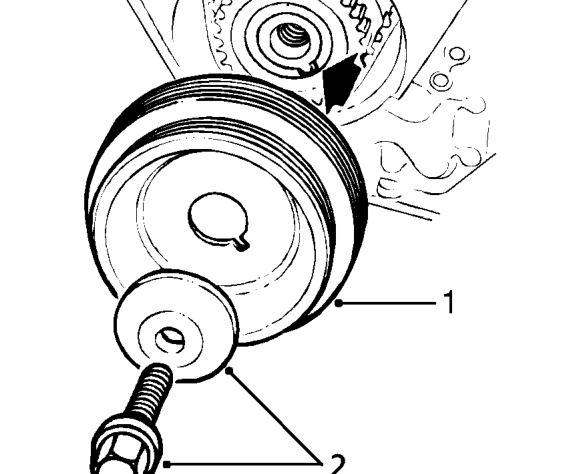

Diagram
  1. Fit crankshaft pulley to crankshaft gear ensuring that indent on pulley locates over lug on gear (arrowed in illustration).
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove 2 bolts securing tool 18G 1742 to flywheel housing and remove tool 18G 1742.
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit auxiliary drive belt. See ELECTRICAL, Repairs.
  6. Connect battery earth lead.

CRANKSHAFT FRONT OIL SEAL

Service repair no - 12.21.14

Remove

  1. Remove camshaft timing belt. See this section.

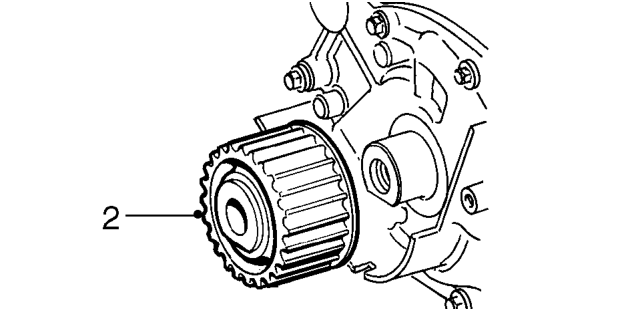

Crankshaft front oil seal – Remove camshaft timing belt. See this section.
  1. Remove crankshaft gear.

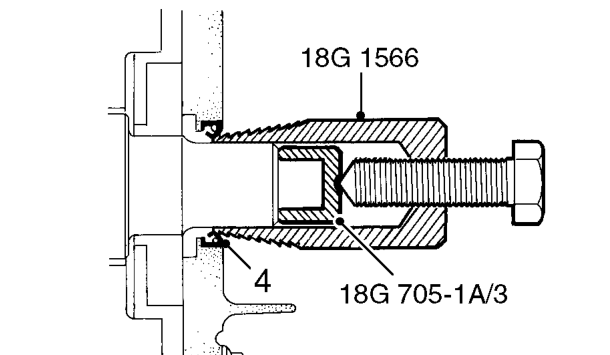

Crankshaft front oil seal – Remove crankshaft gear.
  1. Fit thrust button, tool 18G 705-1A/3 to end of crankshaft.
  2. Ensure bore of tool 18G 1566 is free from burrs.
  3. Screw tool 18G 1566 into crankshaft front oil seal.
  4. Tighten centre bolt of tool 18G 1566 to remove oil seal.
  5. Discard crankshaft front oil seal.
  6. Remove thrust button from crankshaft.
