Camshaft timing belt lower cover

CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove timing belt upper cover. See this section.
4. Remove crankshaft front pulley. See this section.

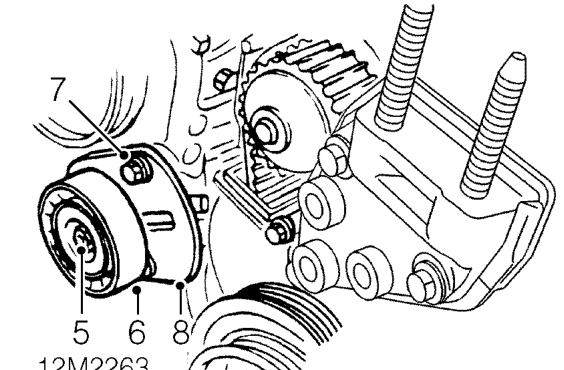

5. Remove nut and collect washer securing power steering pump drive belt tensioner pulley to tension adjuster.
6. Remove power steering pump tensioner pulley.
7. Remove 3 bolts securing drive belt tension adjuster to power steering pump mounting bracket.
8. Remove power steering pump drive belt tension adjuster.

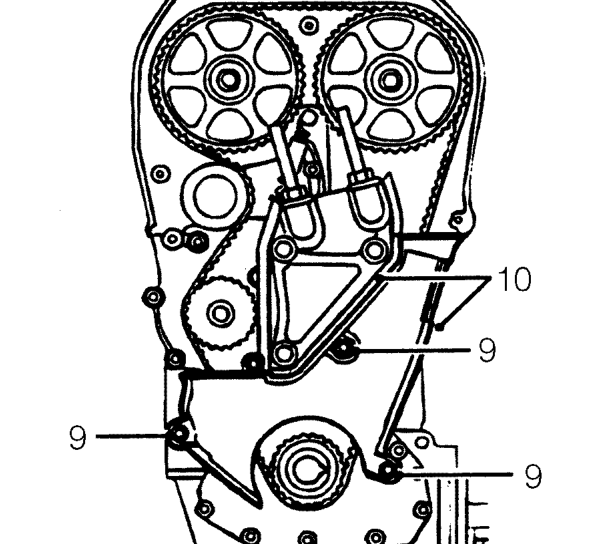

9. Remove 3 bolts securing camshaft timing belt lower cover to engine.
10. Remove camshaft timing belt lower cover and rubber seal.

Refit

1. Clean timing belt lower cover.
2. Fit timing belt lower cover ensuring correct position of rubber seal.
3. Fit bolts securing timing belt lower cover to engine and tighten to 5 Nm .
4. Position drive belt tension adjuster to power steering pump bracket, fit bolts and tighten to 25 Nm.
5. Fit power steering pump tensioner pulley and secure with washer and nut.
6. Fit crankshaft front pulley. See this section.
7. Fit timing belt upper cover. See this section.
8. Remove stand(s) and lower vehicle.
9. Connect battery earth lead.
