Rover 200 Workshop Manual (1995-1999)07 · Engine - K16 with VVC
07 · Engine

Cylinder head gasket - models without air conditioning

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Cylinder head gasket - models without air conditioning
Engine - K16 with VVCCylinder head gasket - models without air conditioning · page 1 of 7

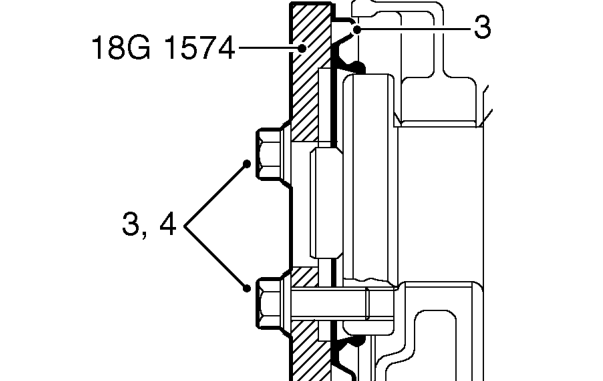

Diagram
  1. Position oil seal to cylinder block and fit oil seal replacer tool 18G 1574, retain tool using three slave bolts.
  2. Evenly tighten oil seal replacer bolts to press oil seal squarely into cylinder block.
  3. Leave oil seal replacer tool and oil seal in clamped position for one minute.
  4. Remove oil seal replacer tool.
  5. Allow sealant to cure for a minimum of 30 minutes before topping-up oil or rotating crankshaft.
  6. Fit flywheel. See this section.

CYLINDER HEAD GASKET - MODELS WITHOUT AIR CONDITIONING

Service repair no - 12.29.02

Remove

  1. Disconnect battery earth lead.
  2. Drain engine coolant. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
  3. Remove and discard camshaft timing belt. See this section.
  4. Check correct alignment of timing marks on crankshaft and camshaft gears.

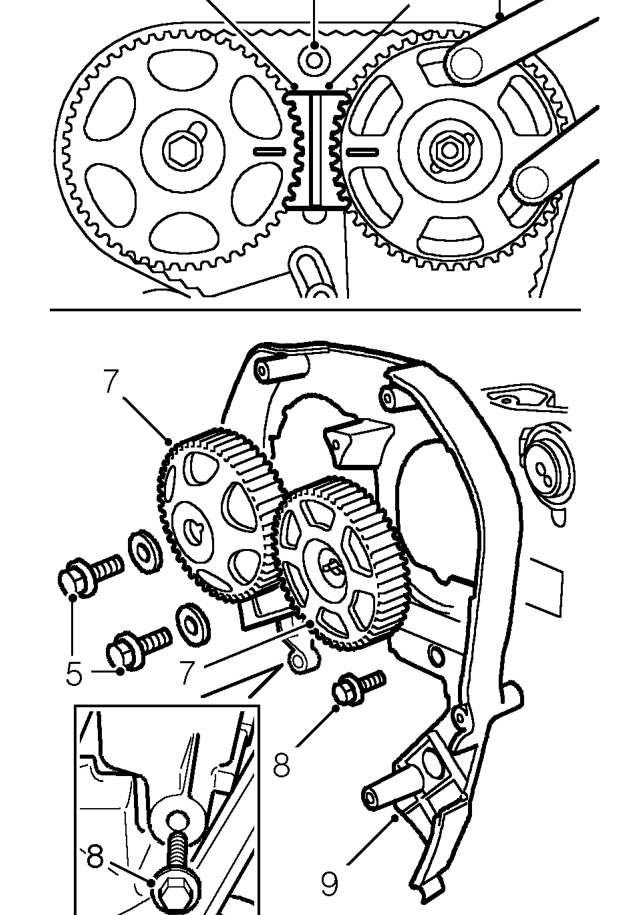

Cylinder head gasket - models without air conditioning – Check correct alignment of timing marks on crankshaft and camshaft gears.
  1. Using tool 12-182 to hold camshaft gears, remove 2 bolts and plain washers from camshaft gears.
  2. Remove tool 18G 1570.
  3. Mark camshaft gears for fitting reference and remove 2 camshaft gears.
  4. Remove 3 bolts from upper part of timing belt rear cover.
  5. Remove rear cover.
