Engine steady bar

ENGINE STEADY BAR

Service repair no - 12.45.08

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

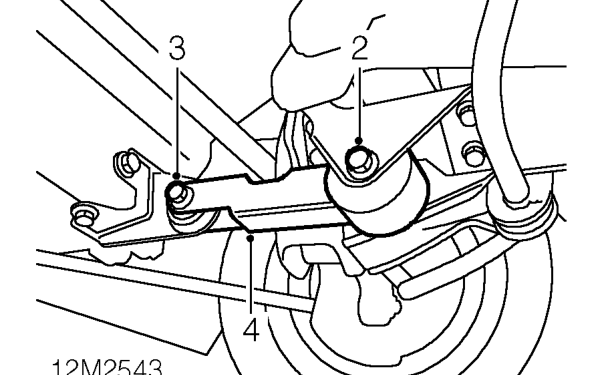

2. Remove through bolt securing engine steady bar to subframe.
3. Remove through bolt securing engine steady bar to bracket on sump.
4. Remove engine steady bar.

Refit

1. Position engine steady bar to subframe and fit through bolt.
2. Fit and tighten through bolt securing steady bar to bracket on sump to 80 Nm.
3. Tighten through bolt securing steady bar to subframe, to 80 Nm.
4. Remove stand(s) and lower vehicle.

ENGINE LH MOUNTING

Service repair no - 12.45.30

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove air cleaner See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

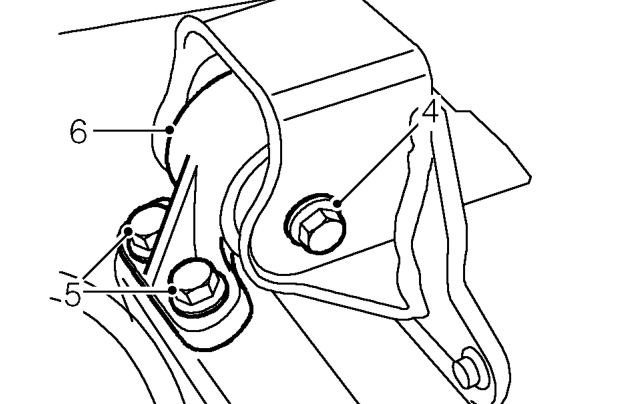

3. Fit wooden block to jack and position jack to support gearbox.

4. Remove through bolt securing engine mounting to bracket on body.
5. Remove 2 bolts securing engine mounting to mounting bracket on gearbox.
6. Remove engine mounting.

Refit

1. Position engine mounting to body and gearbox mounting brackets.
2. Fit bolts securing engine mounting to bracket on gearbox and tighten to 100 Nm.
3. Fit through bolt securing engine mounting to bracket on body and tighten to 85 Nm.
4. Lower jack supporting engine and remove from beneath vehicle.
5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
6. Remove stand(s) and lower vehicle.
