Engine - K16 with VVCInlet camshaft front oil seal
  1. Position top half of air cleaner to lower half and secure with clips.
  2. Fit new camshaft rear timing belt. See this section.

INLET CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.09

Remove

  1. Remove and discard camshaft timing belt. See this section.
Inlet camshaft front oil seal – Remove and discard camshaft timing belt. See this section.

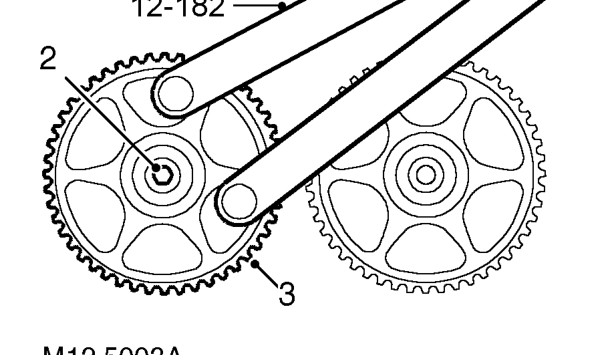

  1. Restrain camshaft gear using tool 12-182 and remove bolt and washer securing camshaft gear to camshaft.
  2. Remove camshaft gear locking tool 18G 1570, remove camshaft gear.
Inlet camshaft front oil seal – Remove camshaft gear locking tool 18G 1570, remove camshaft gear.

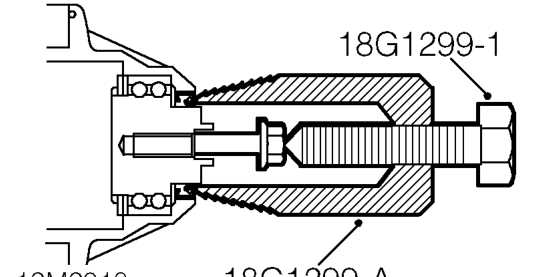

  1. Fit camshaft gear retaining bolt to camshaft and screw tool 18G 1299A into seal.
  2. Remove oil seal by tightening centre bolt of tool 18G 1299A-1.
  3. Remove bolt from camshaft.
