’H’ FRAME BUSH
Service repair no - 64.35.68
Remove
NOTE: The ’H’ frame bush should be inspected at regular intervals. Twist the inner of the bush relative to the housing to check for splits. If any exceed 5 mm in depth the bush must be replaced.
- Raise rear of vehicle.
WARNING: Support on safety stands.
- Remove rear road wheel.

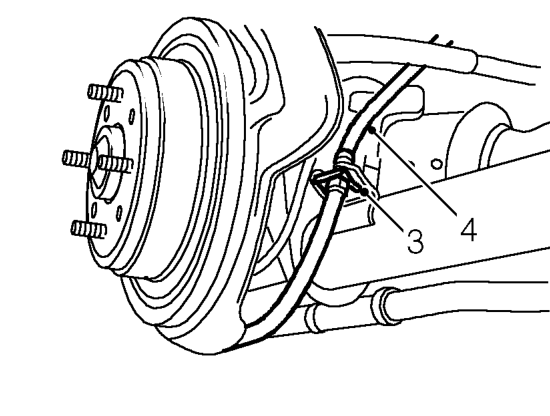

- Remove clip securing brake pipe to ’H’ frame.
- Release brake pipe from ’H’ frame.
- Support hub with trolley jack.

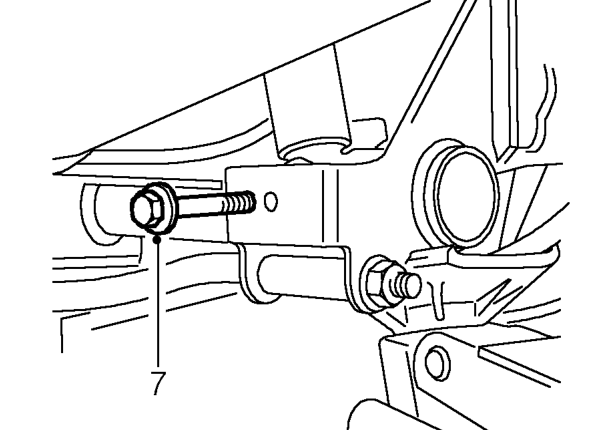

- Remove ’H’ frame pivot bolt.

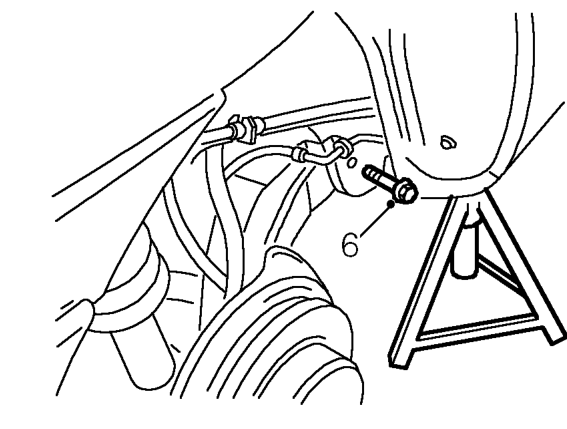

- Remove bolt securing rear damper assembly to ’H’ frame.
