Rear anti-roll bar

Refit

1. Fit bump stop, bump stop plate and dust cover to damper.
2. Fit damper to spring ensuring lower mounting is vertical and spring stop is to rear.
3. Compress spring and fit spring mounting plate ensuring studs are vertical, fit washer and new nut.
4. Hold shaft with Allen key and tighten nut to 29 Nm.
5. Release tension ensuring spring mounting plate and damper are aligned.
6. Remove spring and damper assembly from spring compressor.
7. Remove spring compressor from vice.
8. Fit and align spring and damper assembly to vehicle. Fit new top mounting nuts but DO NOT tighten.
9. Raise ’H’ frame and fit damper bolt, DO NOT tighten.
10. Raise jack to support weight of vehicle, tighten damper top mounting nuts to 38 Nm and fit cover.
11. Tighten bolt securing damper to ’H’ frame to 80 Nm.
12. Remove jack.
13. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
14. Remove stand(s) and lower vehicle.
15. Position boot side carpet and secure with screw.

REAR ANTI-ROLL BAR

Service repair no - 64.35.08

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove 2 nuts and washers securing anti- roll bar to ’H’ frame.

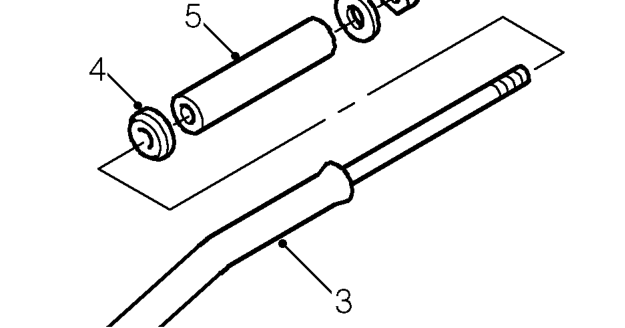

3. Release anti-roll bar spigots from ’H’ frame and remove anti-roll bar.
4. Remove 2 washers from anti-roll bar.
5. Remove spacers from ’H’ frame.

Refit

1. Inspect ’H’ frame spacers for signs of damage; renew if necessary.
2. Fit spacers to ’H’ frame.
3. Lightly grease anti-roll bar spigots.
4. Fit washers to anti-roll bar.
5. Fit anti-roll bar to ’H’ frame.
6. Fit washers and nuts securing anti-roll bar to ’H’ frame and tighten to 100 Nm.
7. Remove stand(s) and lower vehicle.
