’H’ frame - models with drum brakes

Refit

1. With assistance, position ’H’ frame to vehicle and fit pivot bolts. DO NOT tighten.
2. Using a trolley jack, raise centre of ’H’ frame and locate damper assemblies.
3. Tighten bolts securing damper assemblies to ’H’ frame to 80 Nm.
4. Remove trolley jack.
5. Tighten ’H’ frame pivot bolts to 100 Nm.
6. Manoeuvre handbrake cables into position with abutment brackets.
7. Fit cable retaining clips to abutments.
8. Align cables to levers. Fit clevis pins and secure with new spring clips.
9. Align handbrake cables to location points on ’H’ frame and secure with bolts.
10. Fit brake pipes to mounting brackets and secure with clips.
11. Clean banjo bolts and fit new sealing washers.
12. Position hoses to calipers and tighten banjo bolts to 34 Nm.
13. Connect ABS sensor multiplugs and secure to body with clips.
14. Bleed brakes. See BRAKES, Adjustments.
15. Connect handbrake cables to equaliser.
16. Ensure spring is in place and engage equaliser on adjusting rod.
17. Fit cable adjusting nut.
18. Adjust handbrake cable. See BRAKES, Adjustments.
19. Fit rear console. See BODY, Interior trim components.
20. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
21. Remove stand(s) and lower vehicle.
22. Check rear wheel alignment and adjust if necessary. See STEERING, Adjustments.

’H’ FRAME - MODELS WITH DRUM BRAKES

Service repair no - 64.35.67

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).
3. Remove rear console. See BODY, Interior trim components.

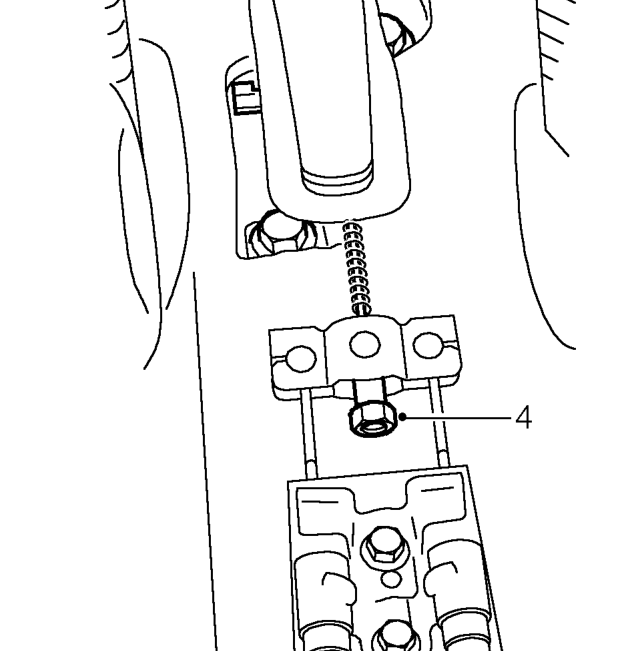

4. Remove handbrake cable adjusting nut.
