Rover 200 Workshop Manual (1995-1999)24 · Rear suspension
24 · Steering & suspension

’H’ frame - models with drum brakes (page 5 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Rear suspension’H’ frame - models with drum brakes · page 5 of 5
Diagram

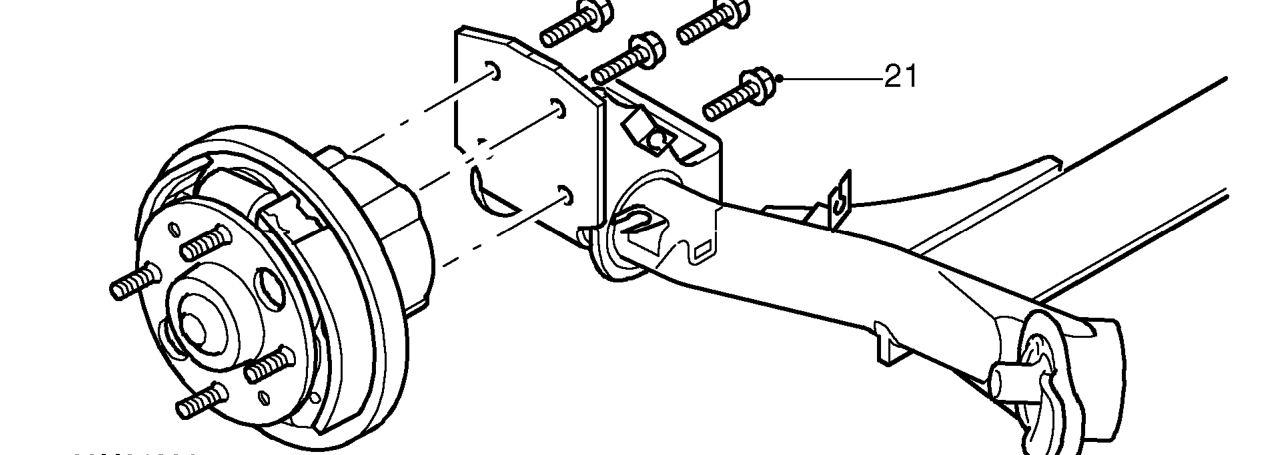

  1. Remove 4 bolts securing each hub/stub axle assembly to ’H’ frame.
  2. Remove each hub/stub axle assembly.
  3. Position each hub/sub axle assembly to new ’H’ frame and tighten bolts to 45 Nm.
  4. Models with ABS: Secure ABS sensor harnesses to ’H’ frame.
Models with ABS: Secure ABS sensor harnesses to ’H’ frame.

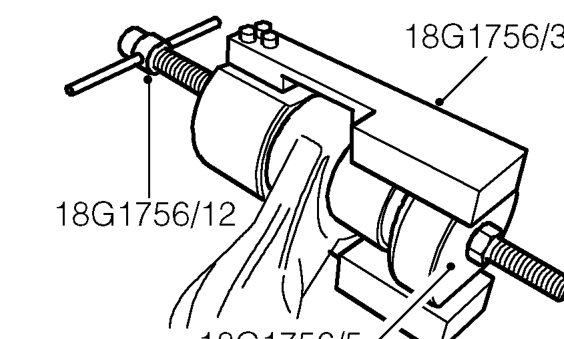

  1. Position new pivot bush to ’H’ frame and fit tools 18G 1756/12, 18G 1756/3 and 18G 1756/5 as shown in illustration.
  2. Rotate handle of tool to press bush into ’H’ frame and remove tools.
  3. Fit second pivot bush to ’H’ frame.
