Rear suspensionRear stub axle - models with disc brakes

REAR STUB AXLE - MODELS WITH DISC BRAKES

Service repair no - 64.15.20

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove rear brake disc. See BRAKES, Repairs.
Rear stub axle - models with disc brakes – Remove rear brake disc. See BRAKES, Repairs.

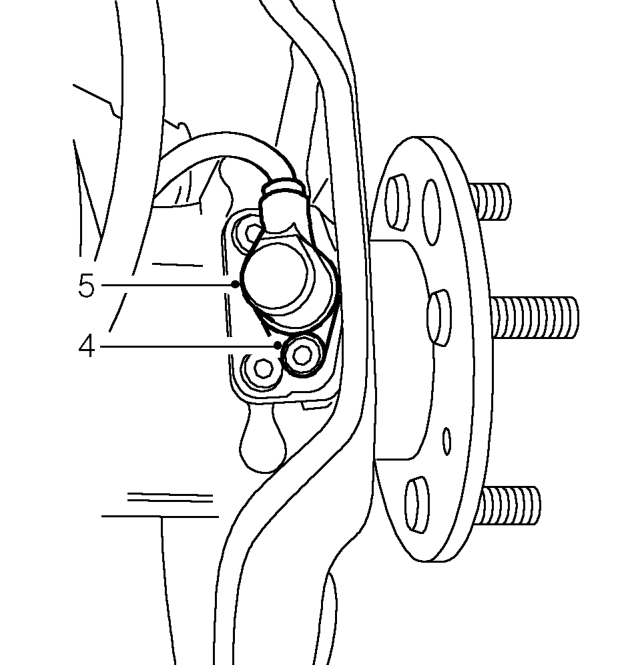

  1. Remove Torx screw securing ABS sensor to stub axle.
  2. Remove ABS sensor.
Rear stub axle - models with disc brakes – Remove ABS sensor.
  1. Remove 4 bolts securing stub axle to ’H’ frame.
  2. Remove stub axle.

Do not carry out further dismantling if component is removed for access only.

Rear stub axle - models with disc brakes – Do not carry out further dismantling if component is removed for access only.

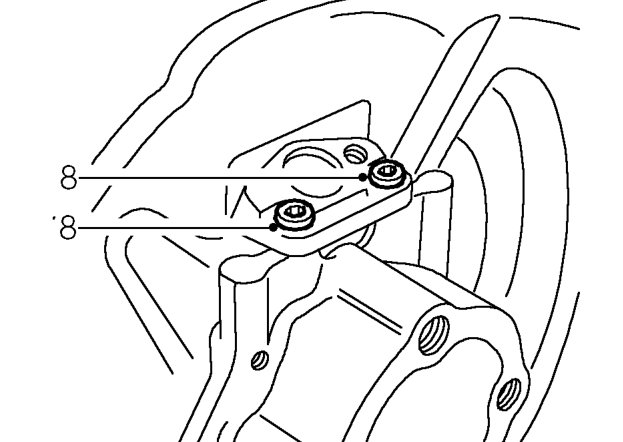

  1. Remove 2 Torx screws securing ABS sensor mounting to stub axle and remove mounting.
