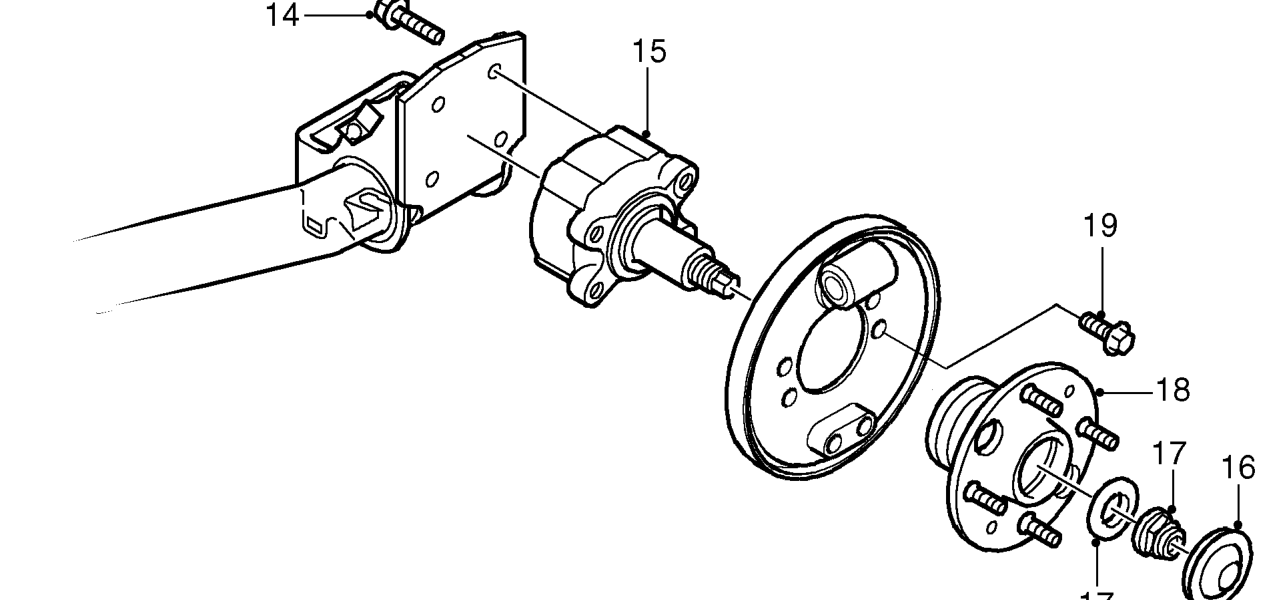

Model without ABS illustrated

Model without ABS illustrated

14. Remove 4 bolts securing stub axle to ’H’ frame.
15. Remove stub axle. Do not carry out further dismantling if component is removed for access only.
16. Remove dust cover from centre of hub.
17. Knock back staking and remove hub nut and washer. Discard nut.

NOTE: The nut threads are handed, i.e the hub nut on the LH side has a LH thread.

18. Remove hub assembly.
19. Remove 4 bolts securing backplate to stub axle. Release and remove backplate.
20. Fit backplate to stub axle.
21. Models with ABS: Align ABS sensor adapter to backplate.
22. Fit bolts securing backplate and tighten to 45 Nm.
23. Clean hub and stub axle.
24. Lubricate seal running surface with grease.
25. Fit hub assembly.
26. Fit washer and new nut. Tighten nut to 180 Nm.
27. Stake nut to stub axle and fit dust cover.

Refit

1. Position stub axle to ’H’ frame, fit bolts and tighten to 45 Nm.
2. Models with ABS: Connect harness multiplug. Secure multiplug to clip and harness to ’H’ frame.
3. Connect brake pipe to wheel cylinder and tighten union to 19 Nm.
