Rover 200 Workshop Manual (1995-1999)24 · Rear suspension
24 · Steering & suspension

Rear spring

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Rear spring
Rear suspensionRear spring · page 1 of 2

REAR SPRING

Service repair no - 64.20.01

The procedure for renewing the rear spring is identical to renewing the rear damper. See this section.

REAR DAMPER

Service repair no - 64.30.02

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

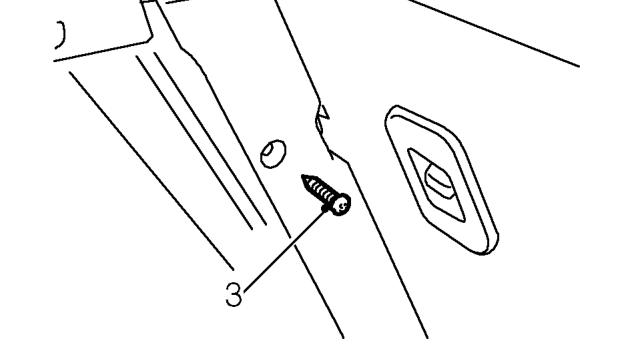

Rear damper – Remove road wheel(s).
  1. Remove screw securing side carpet and pull aside for access.

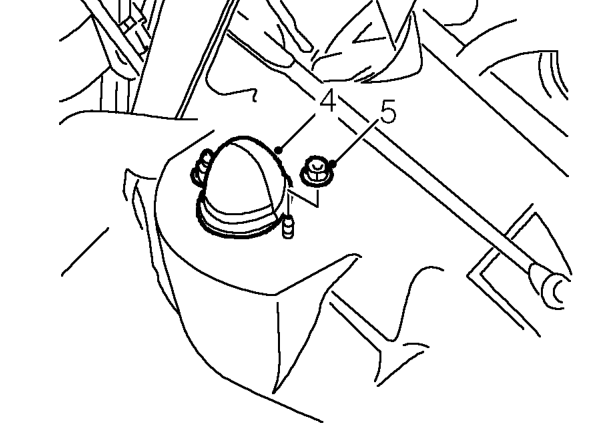

Rear damper – Remove screw securing side carpet and pull aside for access.
  1. Remove upper cover from damper.
  2. Remove 2 nuts securing damper to body.
  3. Support ’H’ frame on jack.
