’H’ frame mounting bracket

Refit

1. With assistance, position ’H’ frame to vehicle and fit pivot bolts. DO NOT tighten.
2. Using a trolley jack, raise centre of ’H’ frame and locate damper assemblies.
3. Tighten bolts securing damper assemblies to ’H’ frame to 80 Nm.
4. Remove trolley jack.
5. Tighten ’H’ frame pivot bolts to 100 Nm.
6. Models with ABS: Connect sensor multiplugs and secure to clips.
7. Manoeuvre handbrake cables into position and connect to handbrake levers.
8. Connect lower springs and fit trailing shoes onto abutments.
9. Fit brake shoe retaining pins and secure with clips.
10. Fit brake drums. See BRAKES, Repairs.
11. Align handbrake cables to location points on ’H’ frame and secure with bolts.
12. Fit brake pipes to mounting brackets and secure with clips.
13. Connect brake pipes to wheel cylinders and tighten unions to 19 Nm.
14. Bleed brakes. See BRAKES, Adjustments.
15. Connect handbrake cables to equaliser.
16. Ensure spring is in place and engage equaliser on adjusting rod.
17. Fit cable adjusting nut.
18. Adjust handbrake cable. See BRAKES, Adjustments.
19. Fit rear console. See BODY, Interior trim components.
20. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
21. Remove stand(s) and lower vehicle.
22. Check rear wheel alignment and adjust if necessary. See STEERING, Adjustments.

’H’ FRAME MOUNTING BRACKET

Service repair no - 64.35.69

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove rear road wheel.

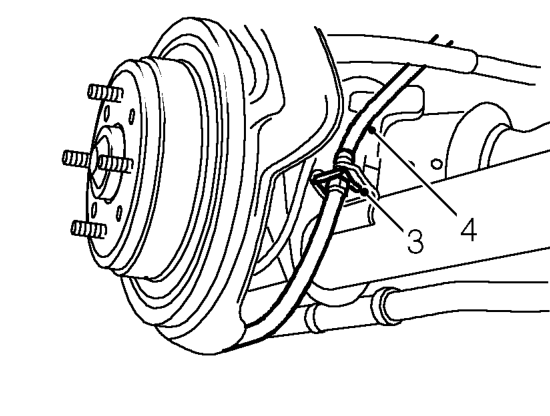

3. Remove clip securing brake pipe to ’H’ frame.
4. Release brake pipe from ’H’ frame.
5. Support hub with trolley jack.

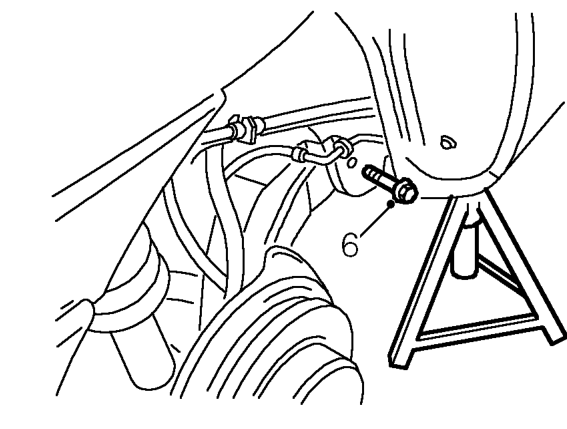

6. Remove ’H’ frame pivot bolt.
