’H’ frame mounting bracket (page 2 of 2)

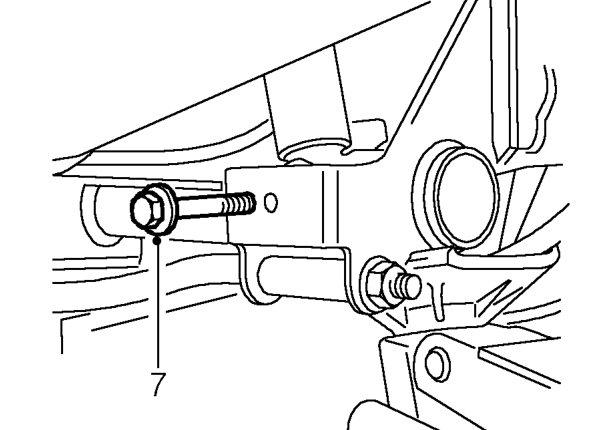

7. Remove bolt securing rear damper assembly to ’H’ frame.

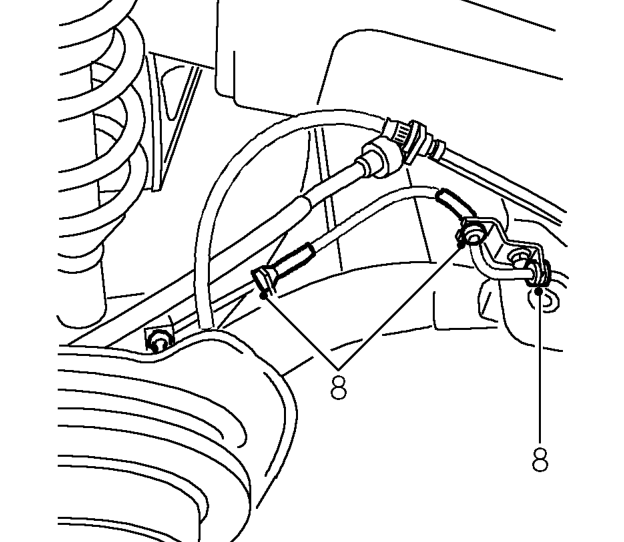

8. Models with ABS: Release ABS harness from ’H’ frame.
9. Lower ’H’ frame and release bush from mounting bracket.

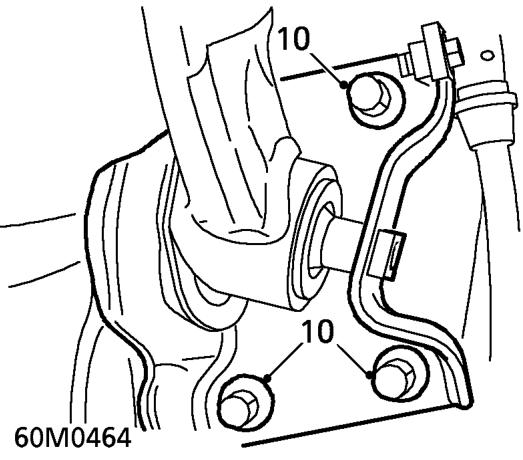

10. Remove 3 bolts securing mounting bracket to body.
11. Remove mounting bracket.

Refit

1. Position mounting bracket to body.
2. Fit bolts securing mounting bracket to body and tighten to 100 Nm.
3. Raise ’H’ frame on jack and fit bolt securing damper assembly and tighten to 80 Nm.
4. Models with ABS: Secure ABS sensor harness to ’H’ frame.
5. Position ’H’ fame and fit pivot bolt. Tighten bolt to 100 Nm.
6. Position brake hose to ’H’ frame and secure with clip.
7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
8. Remove stand(s) and lower vehicle.
9. Check rear wheel alignment. See STEERING, Adjustments.
