Rear stub axle - models with drum brakes

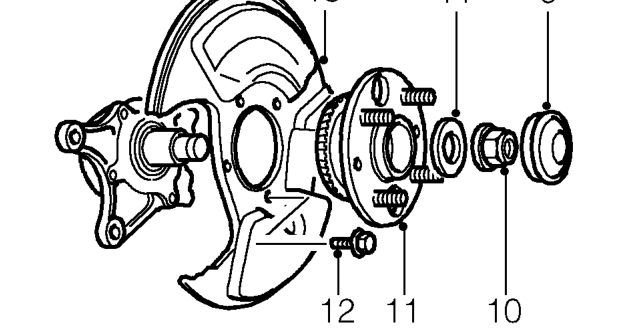

9. Remove dust cover from centre of hub.
10. Knock back staking and remove nut securing hub to stub axle. Discard nut.
11. Remove hub from stub axle and collect spacer.
12. Remove 4 bolts securing backplate to stub axle.
13. Remove backplate and position to new stub axle.
14. Fit and tighten bolts securing backplate to stub axle to 45 Nm.
15. Fit hub to stub axle.
16. Fit spacer to hub.
17. Fit new nut to hub and tighten to 185 Nm. Stake the nut to stub axle.
18. Fit dust cover to hub.
19. Position ABS sensor mounting to stub axle and tighten Torx screws to 10 Nm.

Refit

1. Fit stub axle to ’H’ frame and secure with bolts. Tighten bolts to 45 Nm.
2. Fit ABS sensor to stub axle and tighten torx screw to 6 Nm.
3. Fit rear brake disc. See BRAKES, Repairs.
4. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
5. Remove stand(s) and lower vehicle.

REAR STUB AXLE - MODELS WITH DRUM BRAKES

Service repair no - 64.15.20

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).
3. Remove rear brake drum. See BRAKES, Repairs.

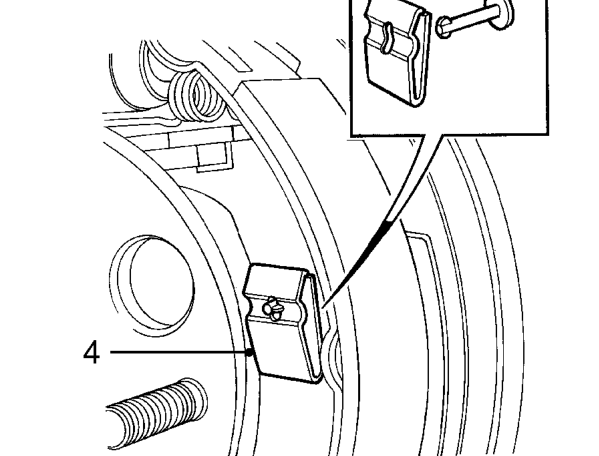

4. Remove 2 clips and 2 pins retaining brake shoes.
