Rover 200 Workshop Manual (1995-1999)24 · Rear suspension
24 · Steering & suspension

Rear stub axle - models with drum brakes (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Rear suspensionRear stub axle - models with drum brakes · page 2 of 3
Diagram

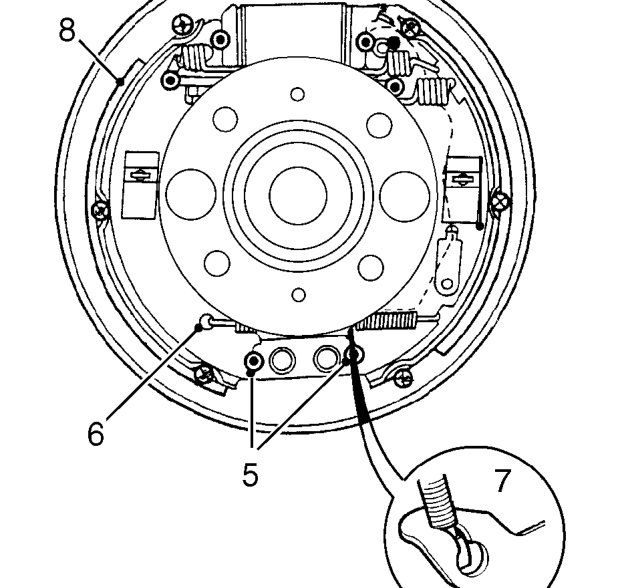

  1. Ease one brake shoe out of retaining groove in abutment followed by other shoe.
  2. Detach return spring from leading shoe end and remove spring.

NOTE: The forward shoe is the LEADING shoe, the TRAILING shoe has the handbrake lever attached to it.

  1. Disconnect handbrake cable from brake lever.

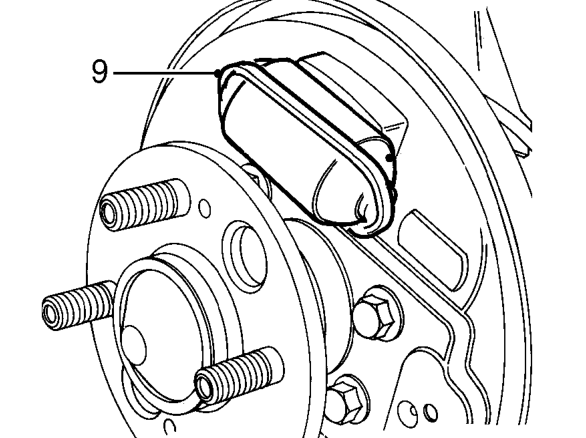

  2. Manoeuvre shoe assembly around wheel cylinder and remove.

CAUTION: Ensure edges of brake shoes do not damage wheel cylinder dust covers.

Manoeuvre shoe assembly around wheel cylinder and remove.

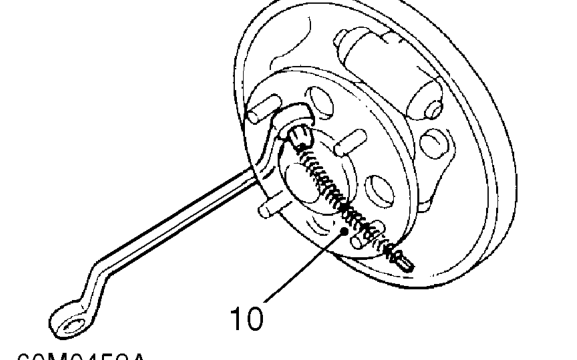

  1. Fit an elastic band around wheel cylinder to retain pistons.
Fit an elastic band around wheel cylinder to retain pistons.
  1. Using a 12 mm ring spanner, release handbrake cable retainer from backplate and withdraw handbrake cable.
