Rear suspensionRear stub axle - models with drum brakes · page 3 of 3
  1. Position container to collect any fluid spillage.
Position container to collect any fluid spillage.

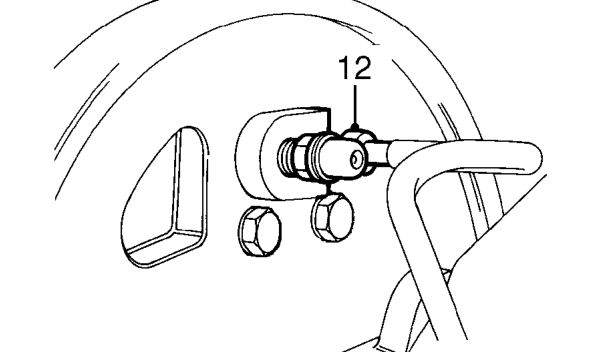

  1. Disconnect brake pipe union from wheel cylinder.

CAUTION: Plug the connections.

Disconnect brake pipe union from wheel cylinder.
  1. Models with ABS: Release ABS sensor multiplug from clip. Disconnect multiplug and release harness from ’H’ frame.
