’H’ FRAME - MODELS WITH DISC BRAKES

Service repair no - 64.35.67

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove rear console. See BODY, Interior trim components.
’h’ frame - models with disc brakes – Remove rear console. See BODY, Interior trim components.

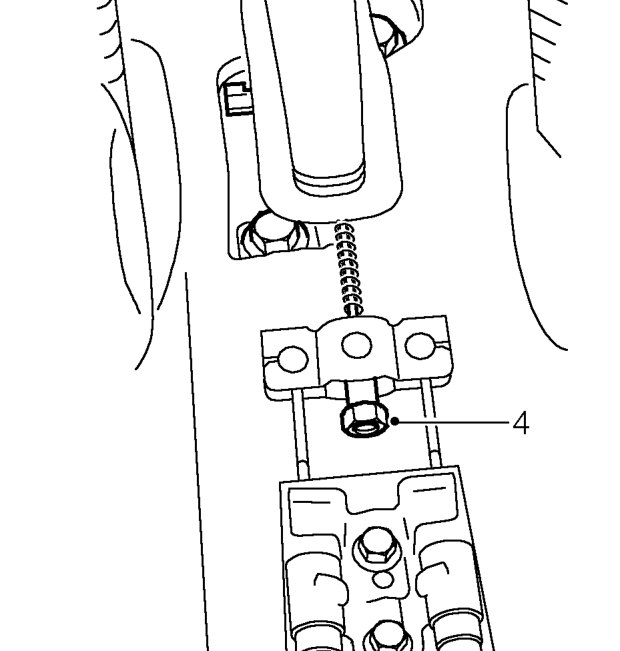

  1. Remove handbrake cable adjusting nut.
’h’ frame - models with disc brakes – Remove handbrake cable adjusting nut.

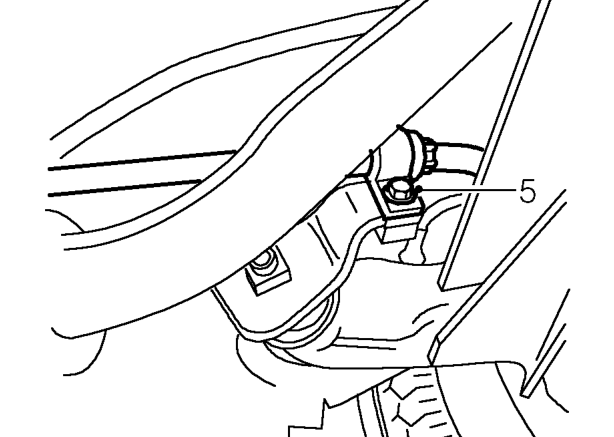

  1. Remove 2 bolts securing handbrake cables to ’H’ frame and release cables.
’h’ frame - models with disc brakes – Remove 2 bolts securing handbrake cables to ’H’ frame and release cables.

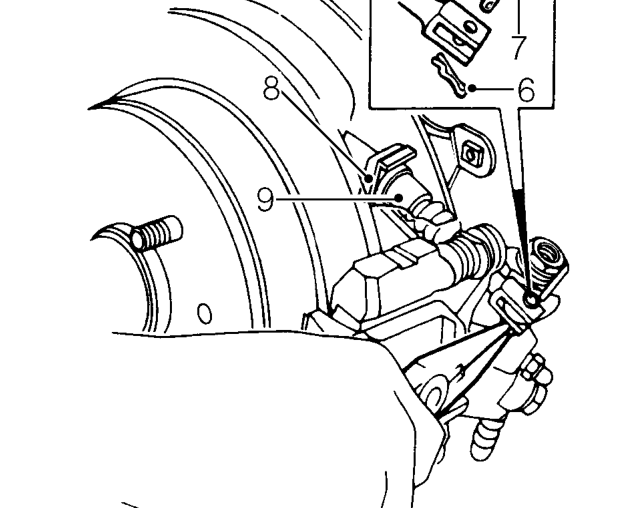

  1. Remove handbrake cable clevis pin spring clips and discard.
  2. Remove handbrake cable clevis pins.
  3. Remove retaining clips from cable abutments.
  4. Release handbrake cables from abutment brackets.
  5. Position container under hub to collect spillage.
  6. Clamp brake hoses to prevent fluid loss.

CAUTION: A brake hose clamp must be used.
